Know before you buy
-
STM32 and STM8
SWD for STM32, SWIM for STM8.
-
Works with common IDEs
ST-LINK Utility, STVD, STVP, IAR EWARM, IAR EWSTM8 and KEIL MDK.
-
20cm DuPont cable
Connects to a standard 2.54mm pin header.
-
5V output
Built-in I/O protection helps protect target boards.

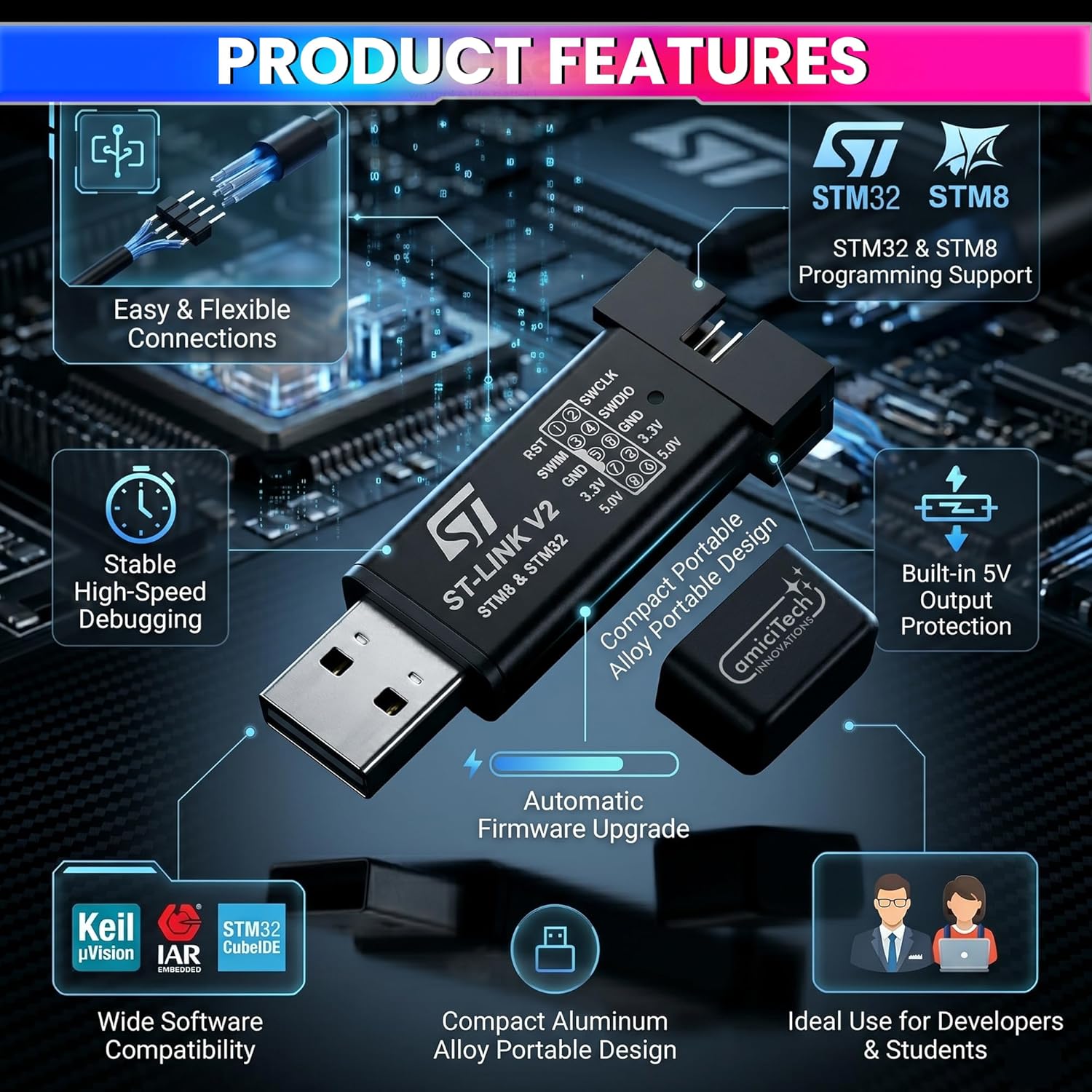

Features that make it useful
-
Automatic firmware upgrade
Stays compatible with newer STM devices.
-
Aluminium alloy housing
Heat dissipation and anti-static protection.
-
For students and engineers
From first LED blink to complex debugging.
-
1-year warranty
Technical support by WhatsApp, call or email.
How to use
-
Install software
Install ST-LINK Utility or your IDE (Keil MDK, IAR, STVD/STVP).
-

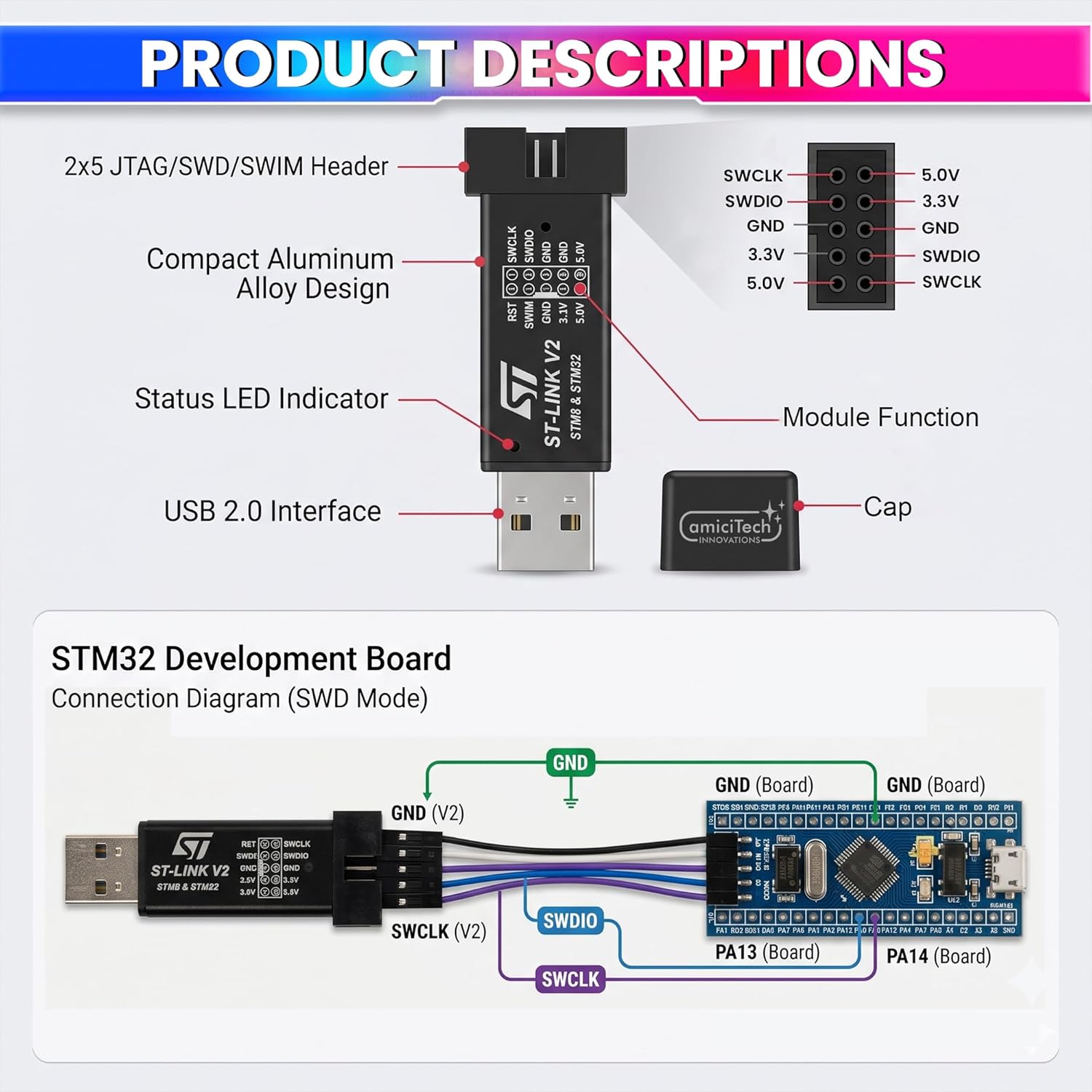

Connect to the target
Connect the programmer to your PC and connect the DuPont cable to the board's SWD or SWIM pins.
-
Flash and debug
Select ST-Link in your software, then download and debug your code.

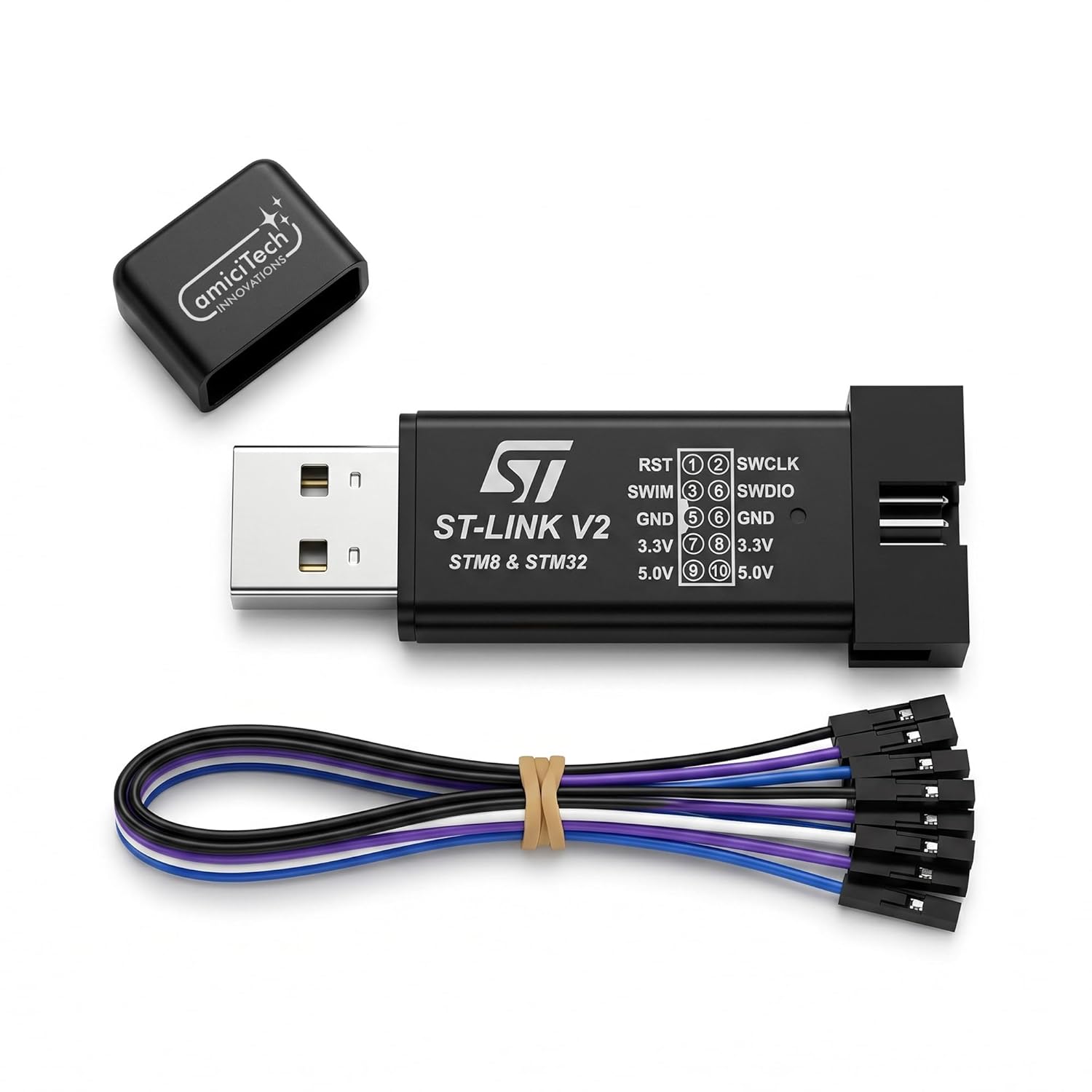

ST-Link V2 Mini Programmer for STM8/STM32
amiciKart · SWD and SWIM · STM32 and STM8 · 5V output · I/O protection · 20cm DuPont cable · aluminium alloy housing
A compact ST-Link V2 Mini programmer and debugger for STM32 and STM8 microcontrollers. It supports SWD and SWIM for fast firmware download and debugging, has a 5V output and built-in I/O protection, and comes with a 20cm DuPont cable for...
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability

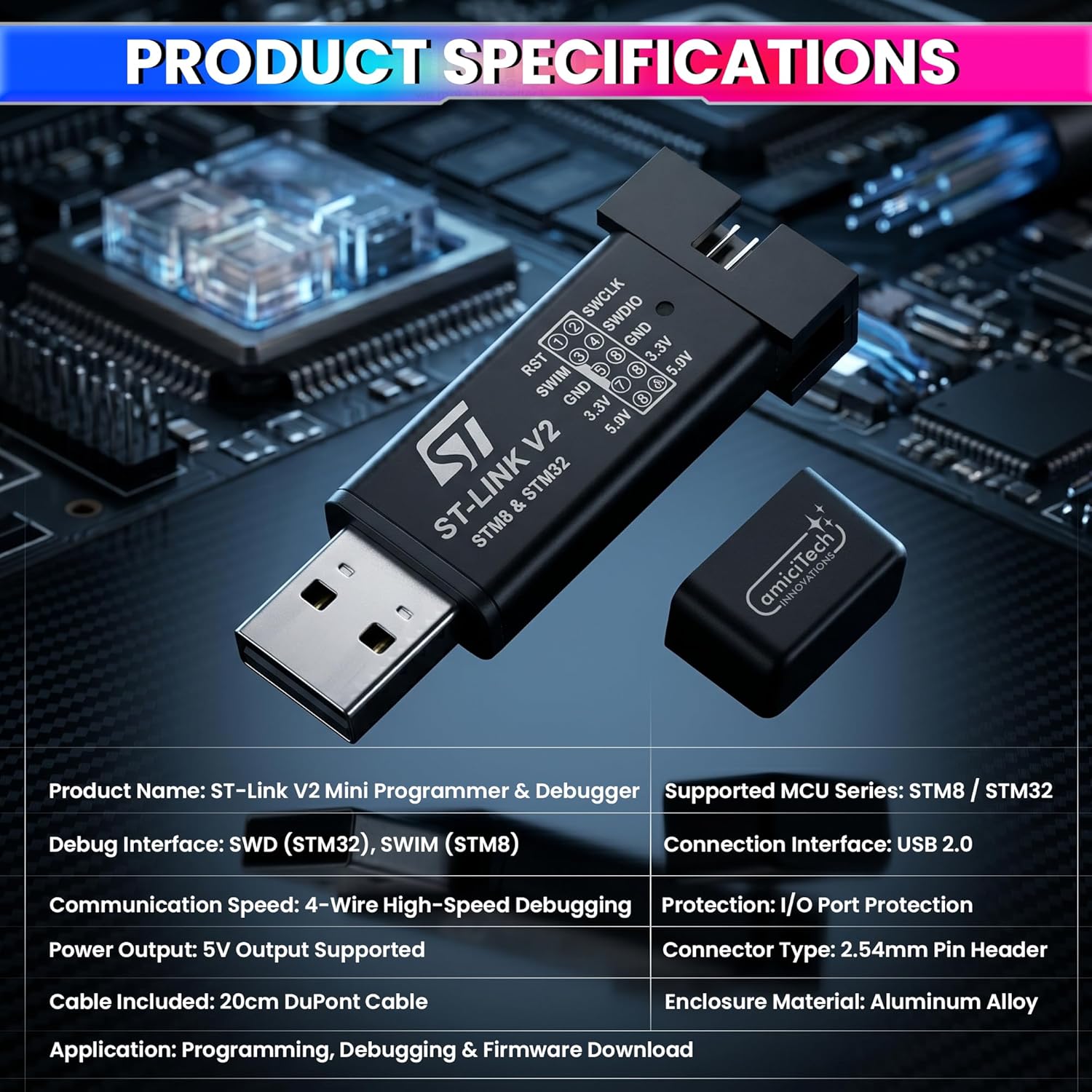

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xST-LINK |
| Type | ST-Link V2 Mini programmer and debugger |
| Supported MCUs | STM32, STM8 |
| Interfaces | SWD, SWIM |
| Output | 5V |
| Protection | I/O protection |
| Cable | 20cm DuPont |
| Header | 2.54mm |
| Software | ST-LINK Utility, STVD, STVP, IAR EWARM, IAR EWSTM8, KEIL MDK |
| Housing | Aluminium alloy |
| Warranty | 1 year |
Frequently asked questions
Does it program STM8 as well as STM32?
Which software does it work with?
Is a cable included?
Full Product Description
ST-Link V2 Mini Programmer for STM8/STM32
A compact ST-Link V2 Mini programmer and debugger for STM32 and STM8 microcontrollers. It supports SWD and SWIM for fast firmware download and debugging, has a 5V output and built-in I/O protection, and comes with a 20cm DuPont cable for the standard 2.54mm pin header. It works with ST-LINK Utility, STVD, STVP, IAR EWARM, IAR EWSTM8 and KEIL MDK, and supports automatic firmware upgrades. Aluminium alloy housing. 1-year warranty.
- Automatic firmware upgrade: Stays compatible with newer STM devices.
- Aluminium alloy housing: Heat dissipation and anti-static protection.
- For students and engineers: From first LED blink to complex debugging.
- 1-year warranty: Technical support by WhatsApp, call or email.
