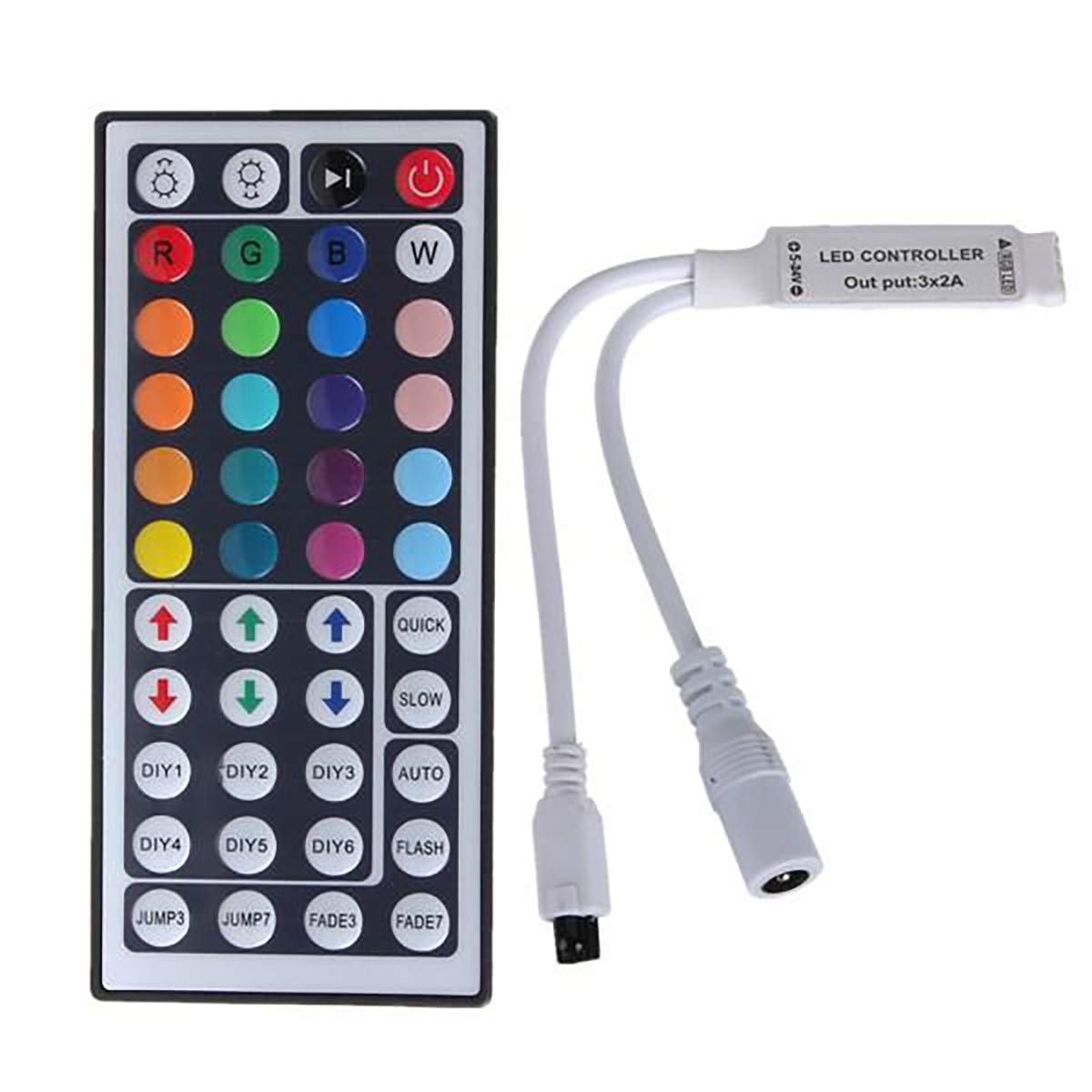

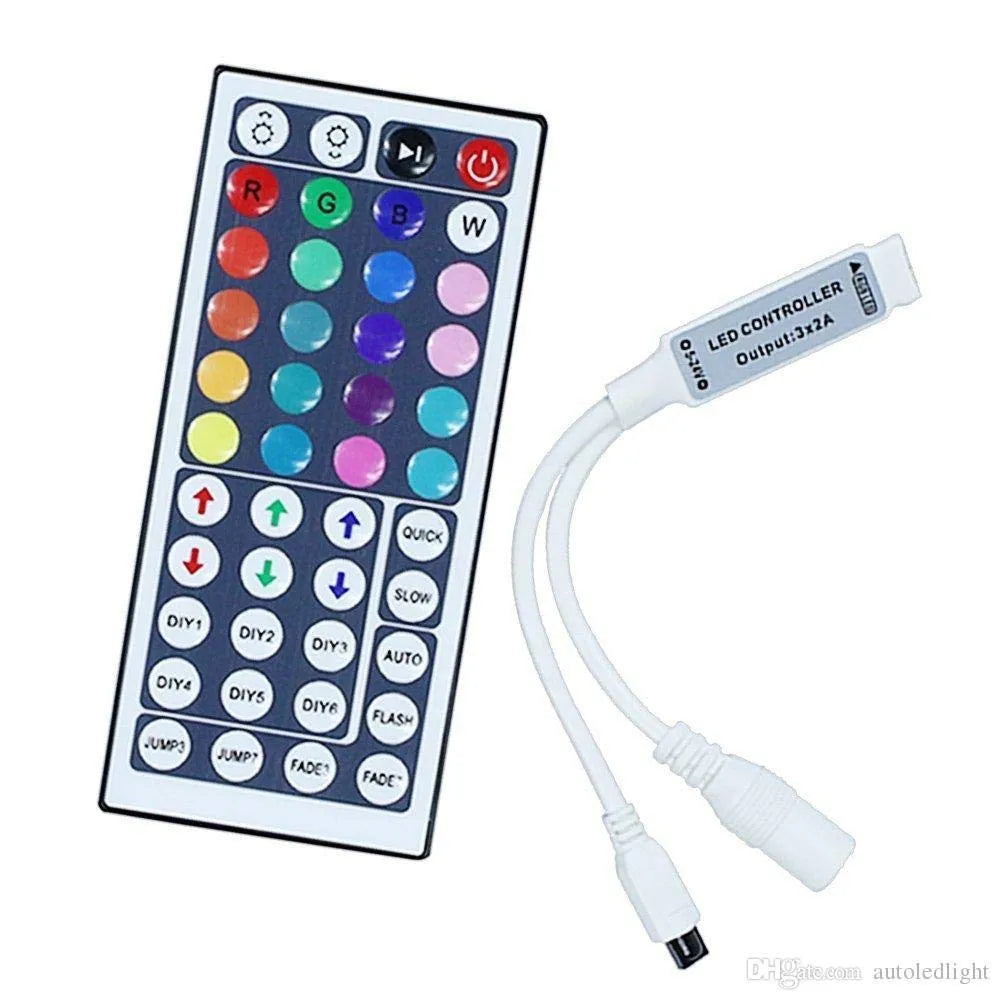

amiciVision 44 Keys IR Remote Controller for RGB 5050 LED Strip Light (Multi Color)

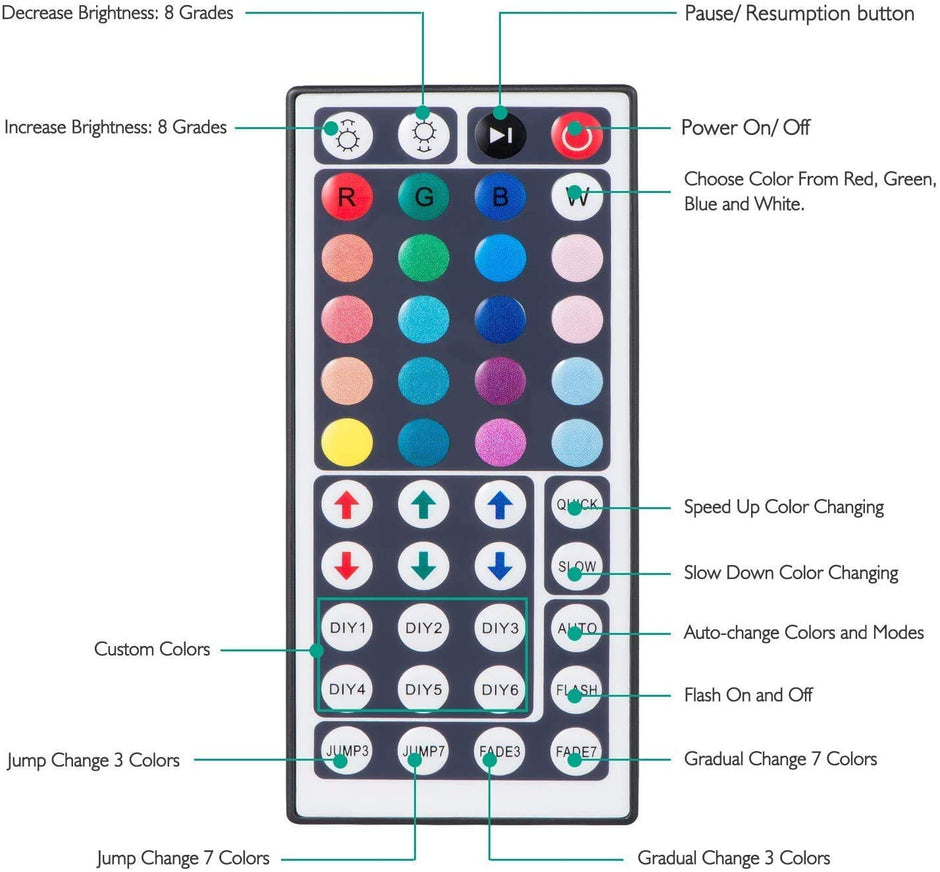

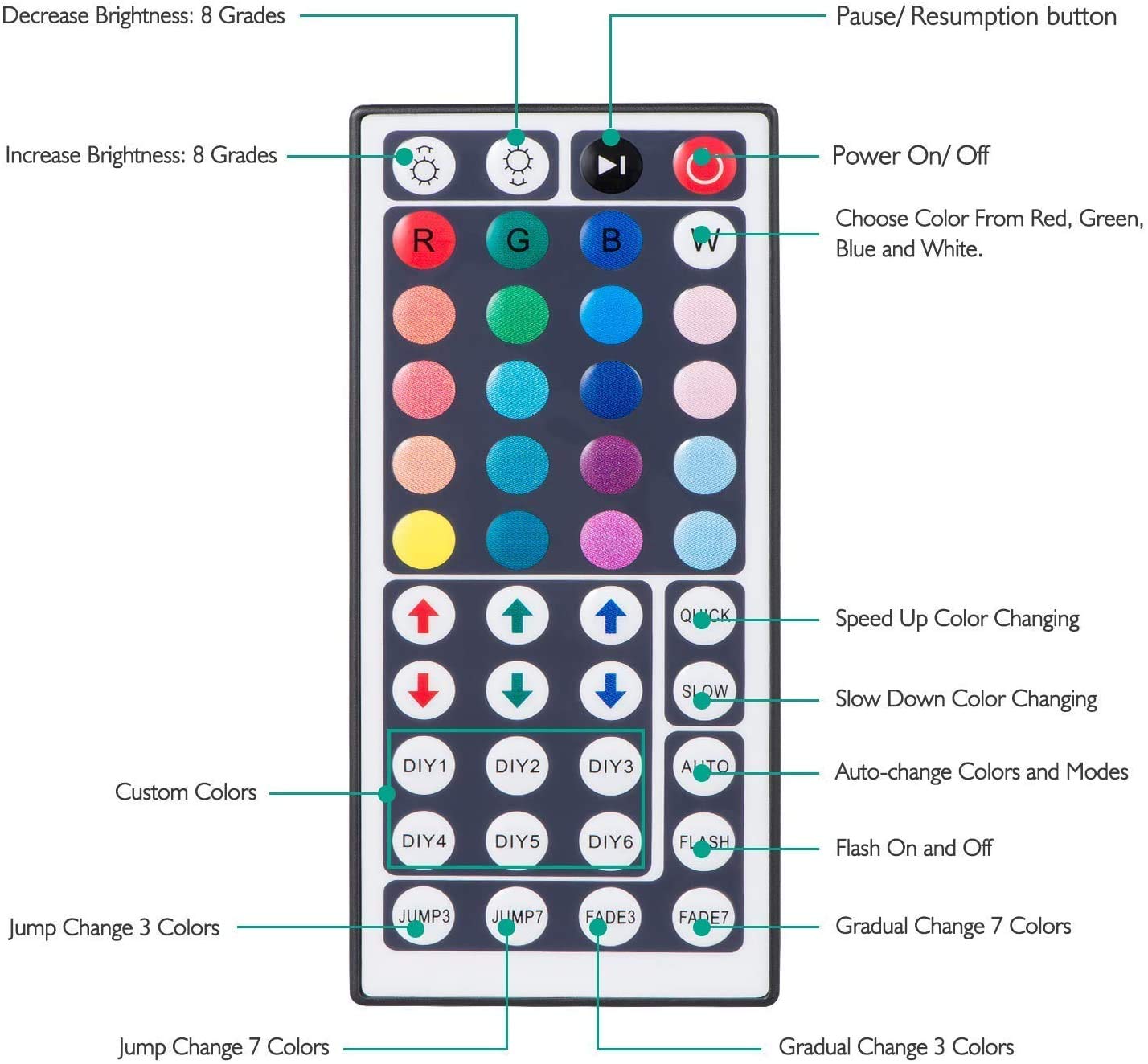

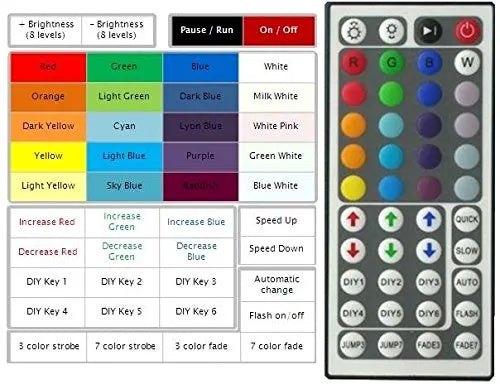

Specifications: ?Type:44Key Remote Controller ? Connection mode: Common Anode(+) ? Input: 12V ? Output: 12V 6A ? Max load current: 2A each color ? Output: three CMOS drain-open output ? Working Temperature: -20?C-60?C ? Mode & Pattern: Color:20 Colors 8 Light Pattern: Quick / Slow / Auto / Flash / 7 color fade change / 3 color fade change / 7 color jumpy change / 3 color jumpy change R / G / B increase and decrease control 6 DIY keys Please refer to English manual to get detailed operation ? 44 keys infrared controller which has 6 keys(DIY keys) for momories the colors what you preferred. ? Control box dimension: 50mm x 34mm x 22mm ? 0.2mm ? Remote controller dimension: Size:124 (L) ?56(W) ? 6 (H) ? 0.2mm ? Remote controller battery: 1 x CR2025 ? Control range: 10cm - 500cm RGB LED Strips ? Support 10 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD 5050 60LEDs / M LED Strips About diy key,pressed first time will enter the diy color mode,you can adjust the color per the 6 key s at adove to increase or decrease the R/G/B color by yourself freely(if othr key is pressed this time, will jump out from diy color mode), and you can save the color which you hav adjusted by pressing the diy key once again,when next time this pressed, it will show the color you saved last time There are 6 diy keys so you can save 6 color you like, they are all independent, have on effect each othe for example: if you press diy key 1 first and then press diy key 2 diy key 1 will beinvalid, until diy key 2 is pressed once again, current color will be saved

• 44Key Remote Controller for RGB LED strip lights.
• Mode & Pattern: Color:20 Colors 8 Light Pattern
• Support 10 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD 5050 60LEDs / M LED Strips
• Remote controller battery: 1 x CR2025(Included)
