amiciTools P6100 100MHz for Tektronix Oscilloscope Analyzer Probe Kit
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 1,469.00
-27%
Regular price
Rs. 2,000.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 1,469.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Model:P6100
Bandwidth:DC-6MHz DC-100MHz
Attenuation Ration:1:10?
Input Resistance:1M:10M?
Input Capacitance:1X:85pF-120pF 10X:18.5pF-22.5pF
Compensation Range:10pF-30pF?
Working Voltage:1X:<200vDC+ACPeak 10X:<600vDC+ACPeak
Cable length:120cm?
Temperature opertating:-10?~ +50??
opertating :-20 ?~ +75??
Humidity:?5% (relative humidity)?
Specifications:
Cable length:120cm?
Color:Grey+Black?

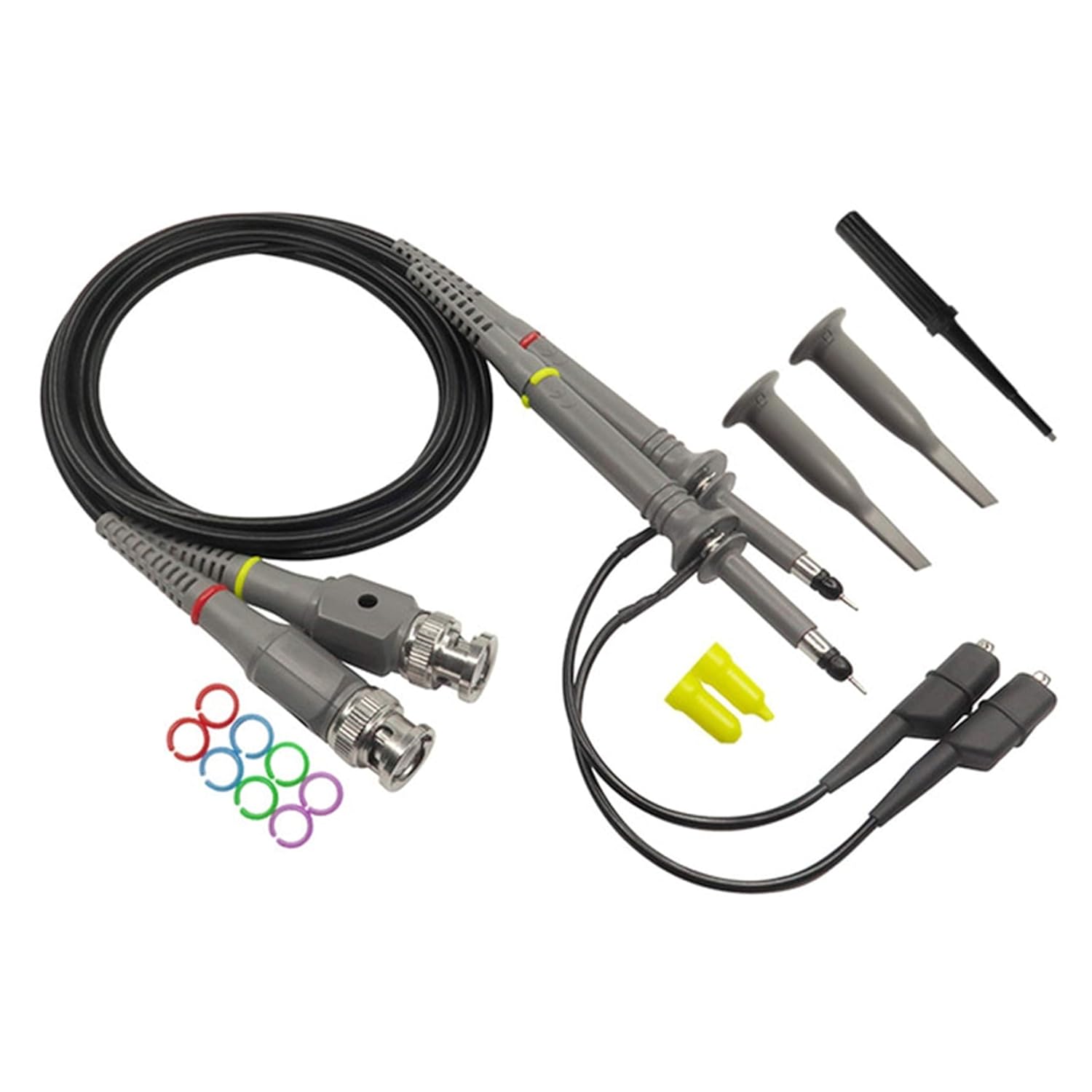

Package List:
2xPair of Test Probes
1xBag of Accessories
1xUser Manual

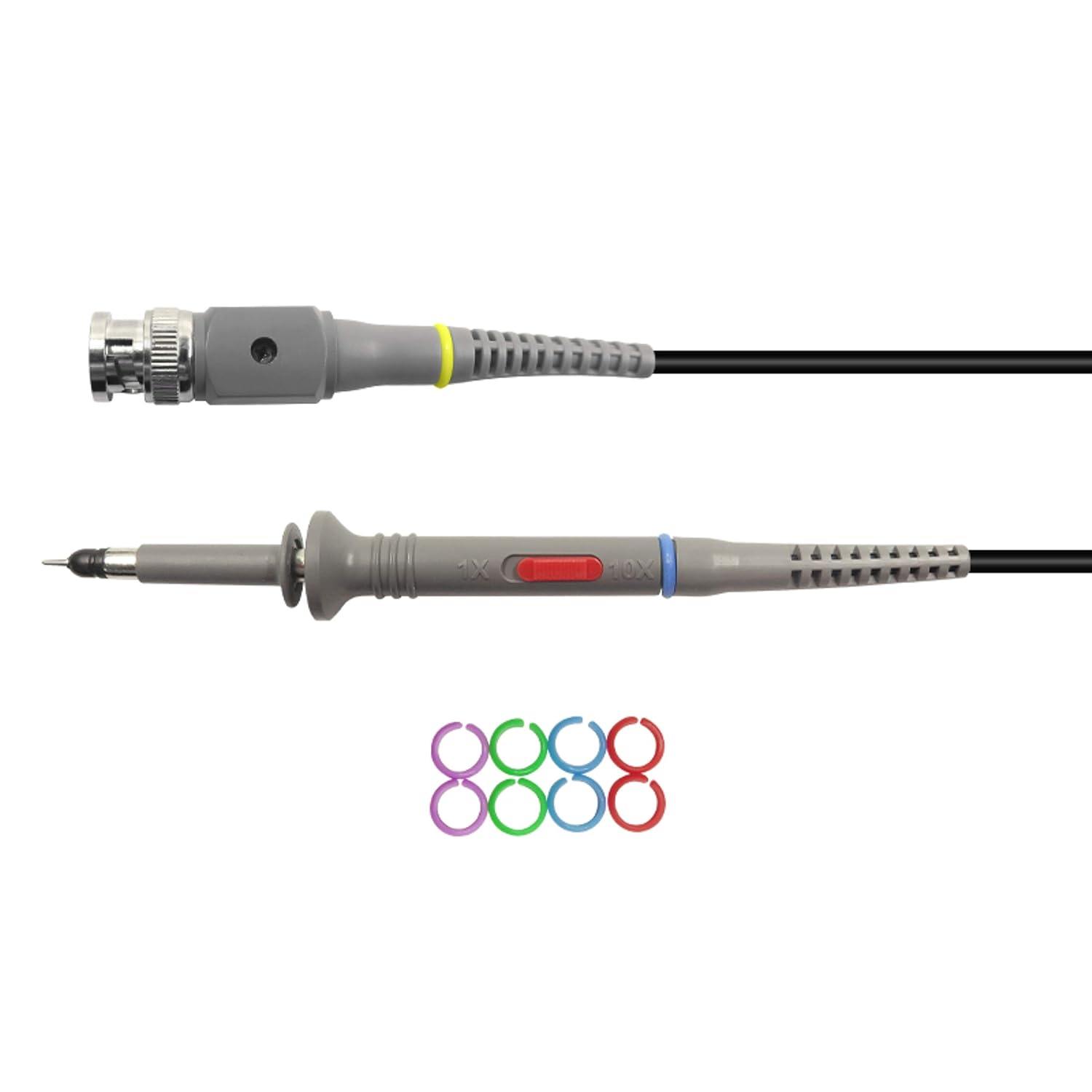

- Detachable hook tip, the hook is well protected by the plastic case. Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
- Compact size, several functions combined in one, this probe is convenient to use. Adjustable probe attenuation, you can choose 1x or 10x by sliding the switch.
- Marker rings in different colors help to identify different channels. Great choice for oscilloscope probe.

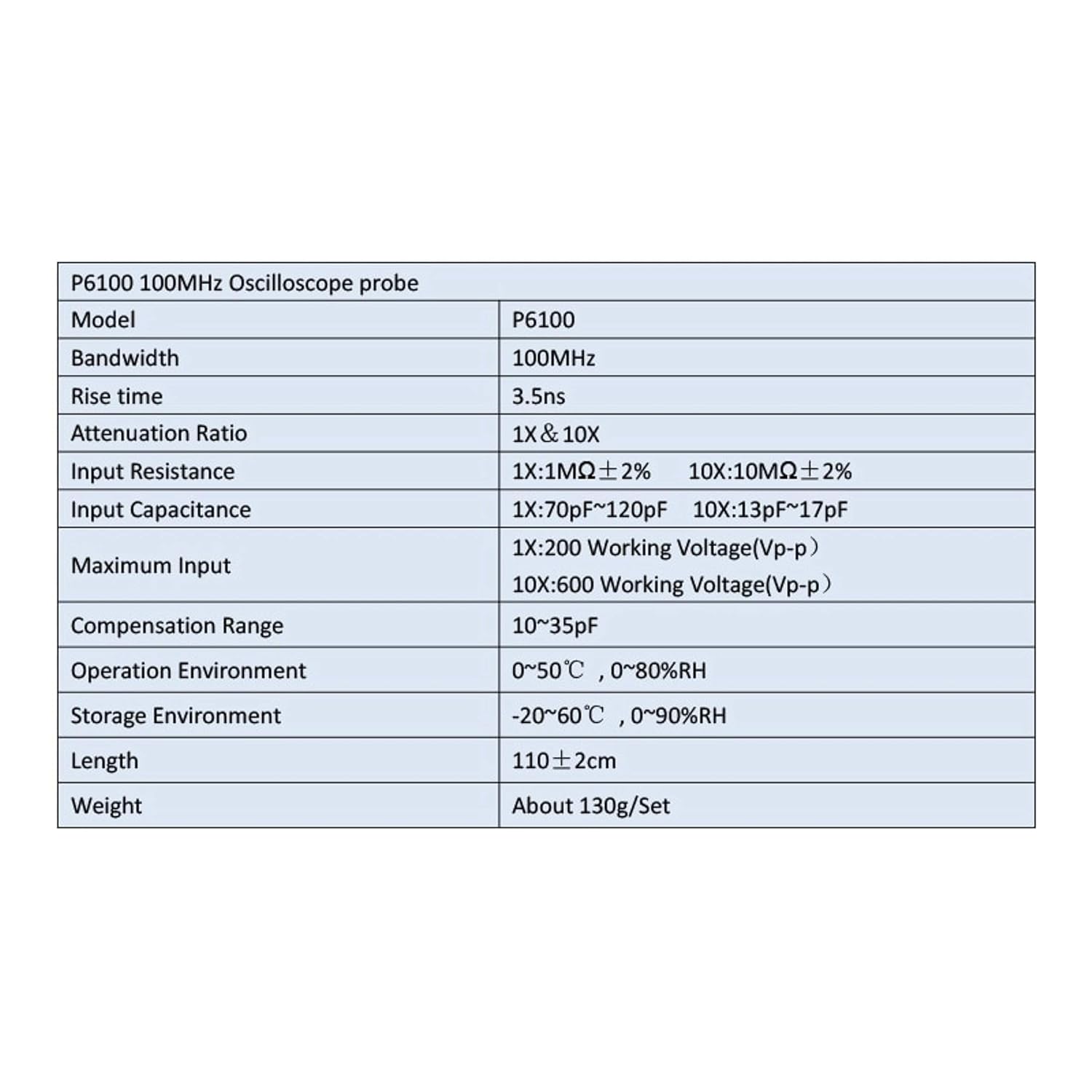

- Band Width: 100MHz Rise Time: 3.5ns Attenuation Ratio: 1X / 10X Input Resistance: (1MΩ/10MΩ)±2% Input Capacitance: 1X: 70pF-120pF 10X: 13-17pF Maximum Input: 1X: 200 Working Voltage(Vp-p) 10: 600 Working Voltage(Vp-p)
- Compensation Range: 10-35pF Operating Temperature: 0-50°C Operating Humidity: 0-80%RH.
Low stock
In stock, ready to ship
Have a question?
Description
Subheading
Add t
Model:P6100
Bandwidth:DC-6MHz DC-100MHz
Attenuation Ration:1:10?
Input Resistance:1M:10M?
Input Capacitance:1X:85pF-120pF 10X:18.5pF-22.5pF
Compensation Range:10pF-30pF?
Working Voltage:1X:<200vDC+ACPeak 10X:<600vDC+ACPeak
Cable length:120cm?
Temperature opertating:-10?~ +50??
opertating :-20 ?~ +75??
Humidity:?5% (relative humidity)?
Specifications:
Cable length:120cm?
Color:Grey+Black?
Package List:
2xPair of Test Probes
1xBag of Accessories
1xUser Manual
- Detachable hook tip, the hook is well protected by the plastic case. Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
- Compact size, several functions combined in one, this probe is convenient to use. Adjustable probe attenuation, you can choose 1x or 10x by sliding the switch.
- Marker rings in different colors help to identify different channels. Great choice for oscilloscope probe.
- Band Width: 100MHz Rise Time: 3.5ns Attenuation Ratio: 1X / 10X Input Resistance: (1MΩ/10MΩ)±2% Input Capacitance: 1X: 70pF-120pF 10X: 13-17pF Maximum Input: 1X: 200 Working Voltage(Vp-p) 10: 600 Working Voltage(Vp-p)
- Compensation Range: 10-35pF Operating Temperature: 0-50°C Operating Humidity: 0-80%RH.
