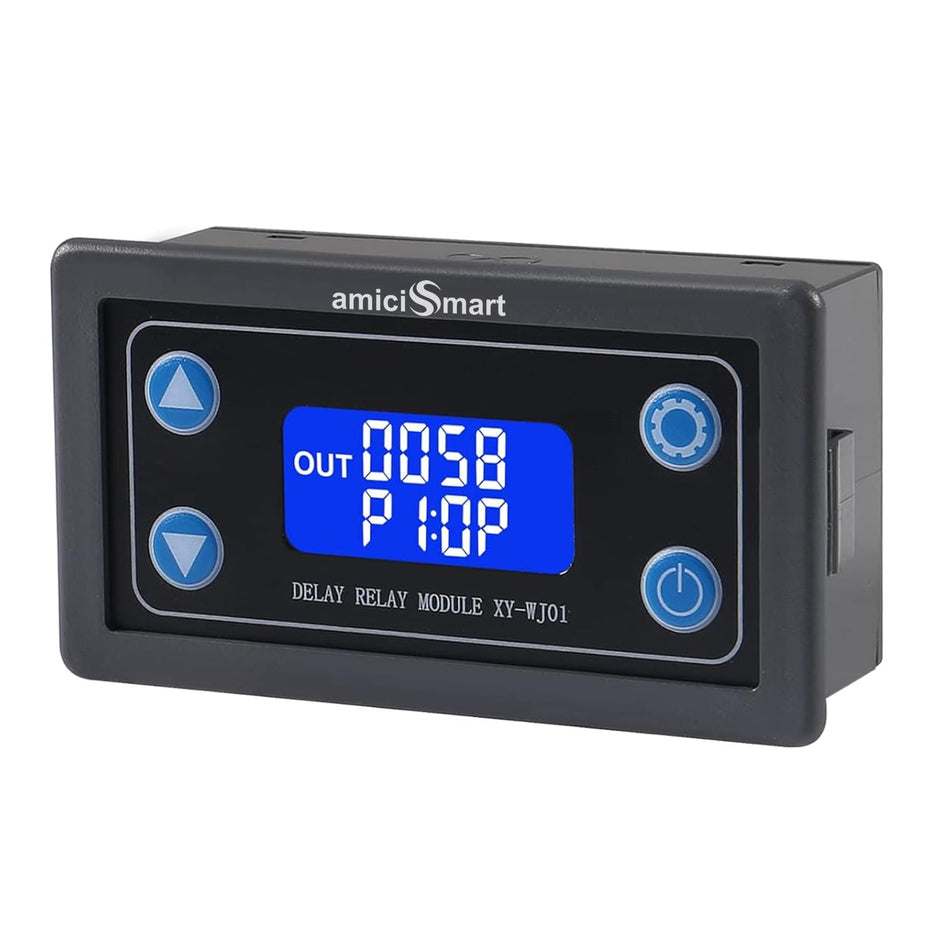

amiciSmart Programmable Timer Delay Relay Module with LCD Display ? Adjustable 0.01s~9999min Timing, Trigger Delay Control with UART Data Upload (6-30VDC)
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 999.00
-45%
Regular price
Rs. 1,800.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

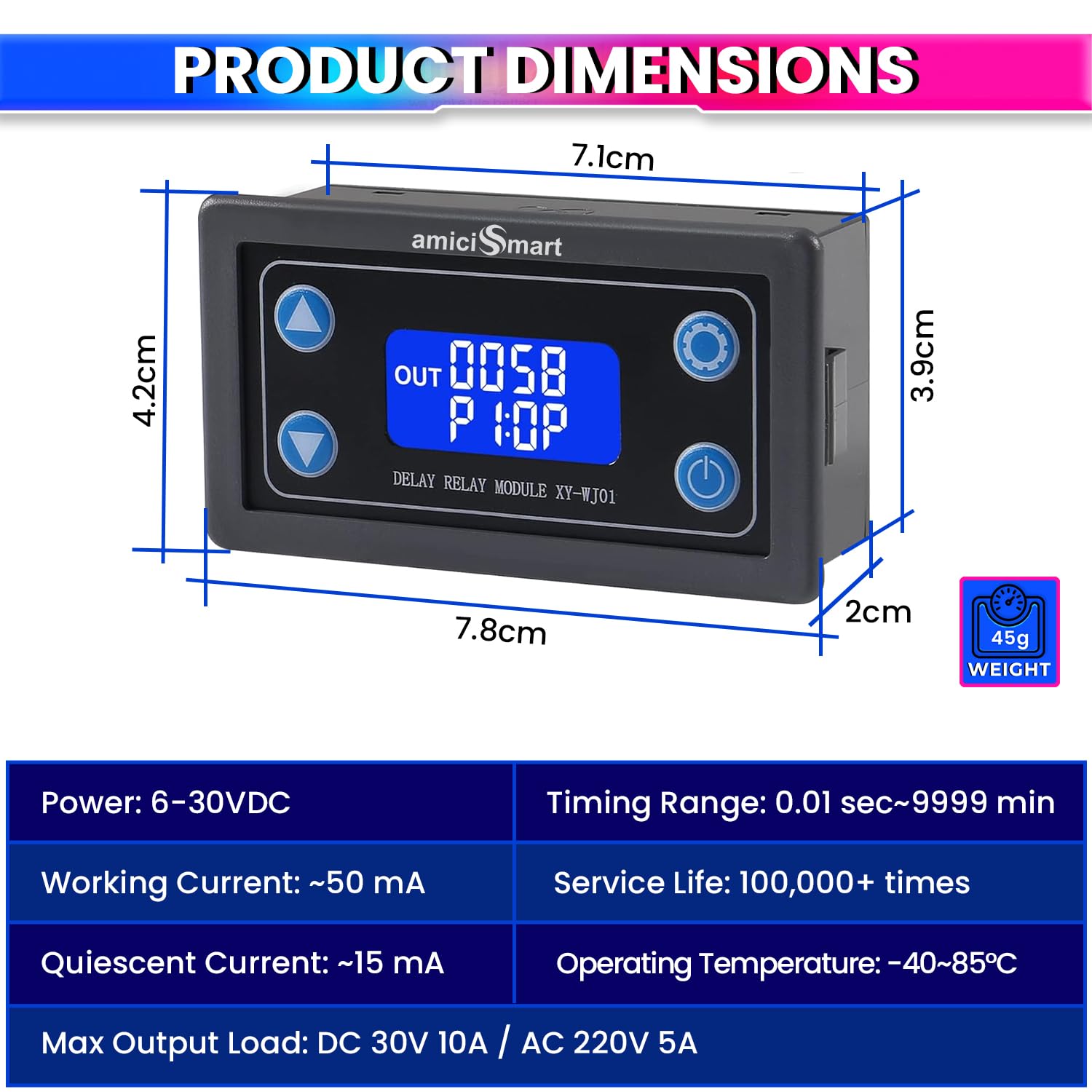

Specification:-
Power: 6-30VDC
Quiescent Current: ~15 mA
Working Current: ~50 mA
Timing Range: 0.01 sec~9999 min

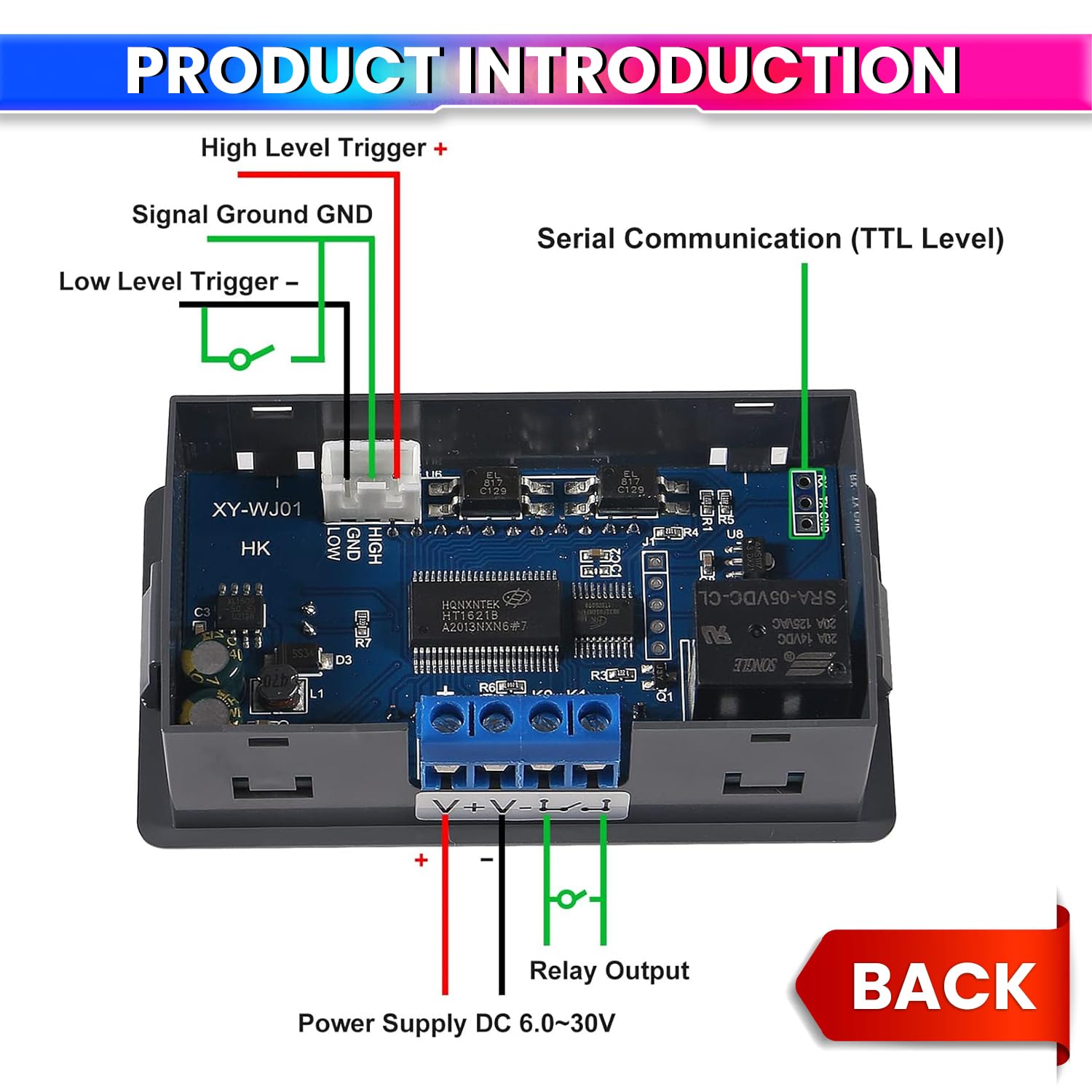

Trigger signal source: High level trigger (3.0V~24V), Low level trigger (0.0V~0.2V), switching control (passive switch)
Relay: SPST-NO Isolated Contacts

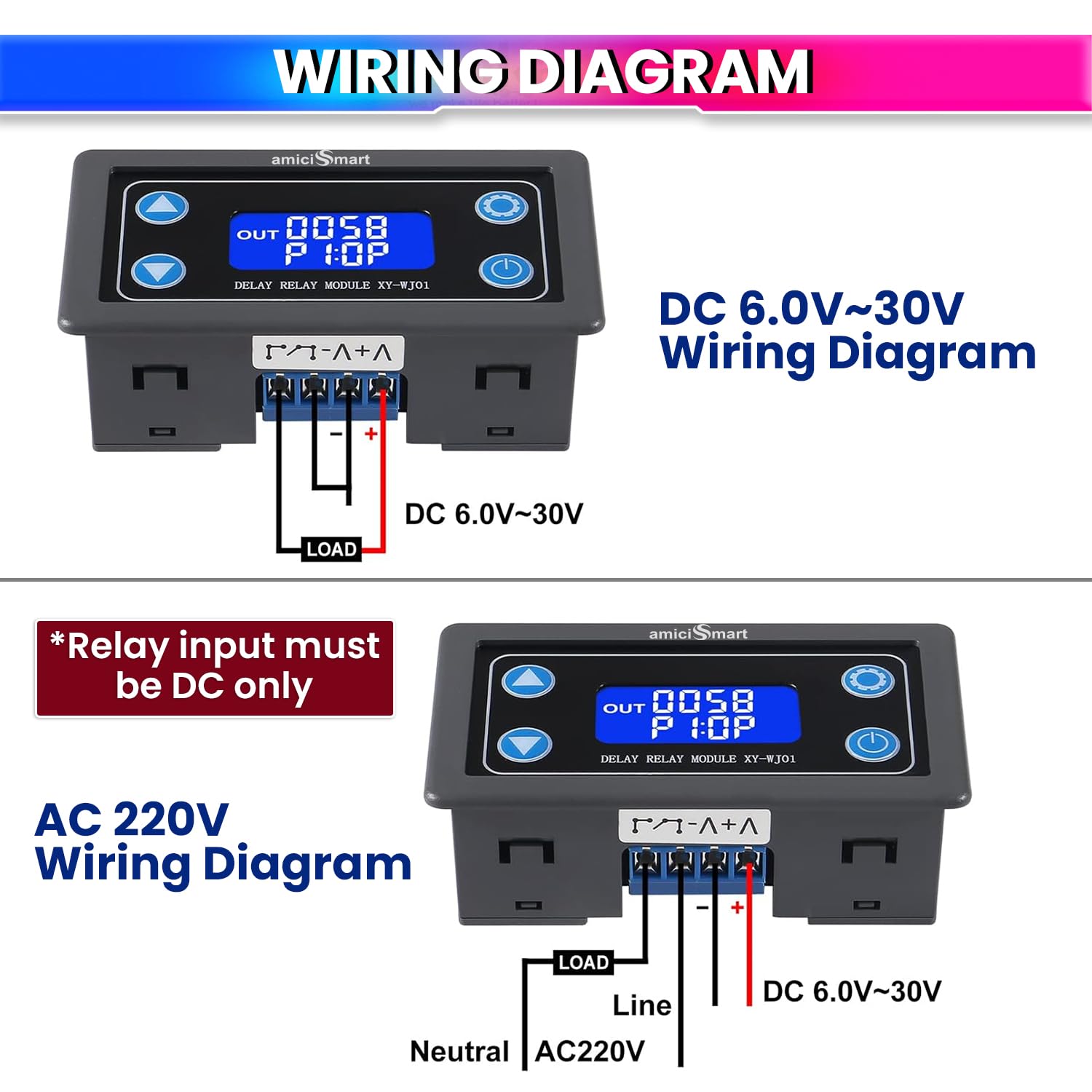

Max output load: DC 30V 10A and AC 220V 5A
Operating Temperature: -40~85?C
Connections: Terminal Strip
Service life: More than 100,000 times
Power: 6-30VDC
Quiescent Current: ~15 mA
Working Current: ~50 mA
Timing Range: 0.01 sec~9999 min
Trigger signal source: High level trigger (3.0V~24V), Low level trigger (0.0V~0.2V), switching control (passive switch)
Relay: SPST-NO Isolated Contacts
Max output load: DC 30V 10A and AC 220V 5A
Operating Temperature: -40~85?C
Connections: Terminal Strip
Service life: More than 100,000 times

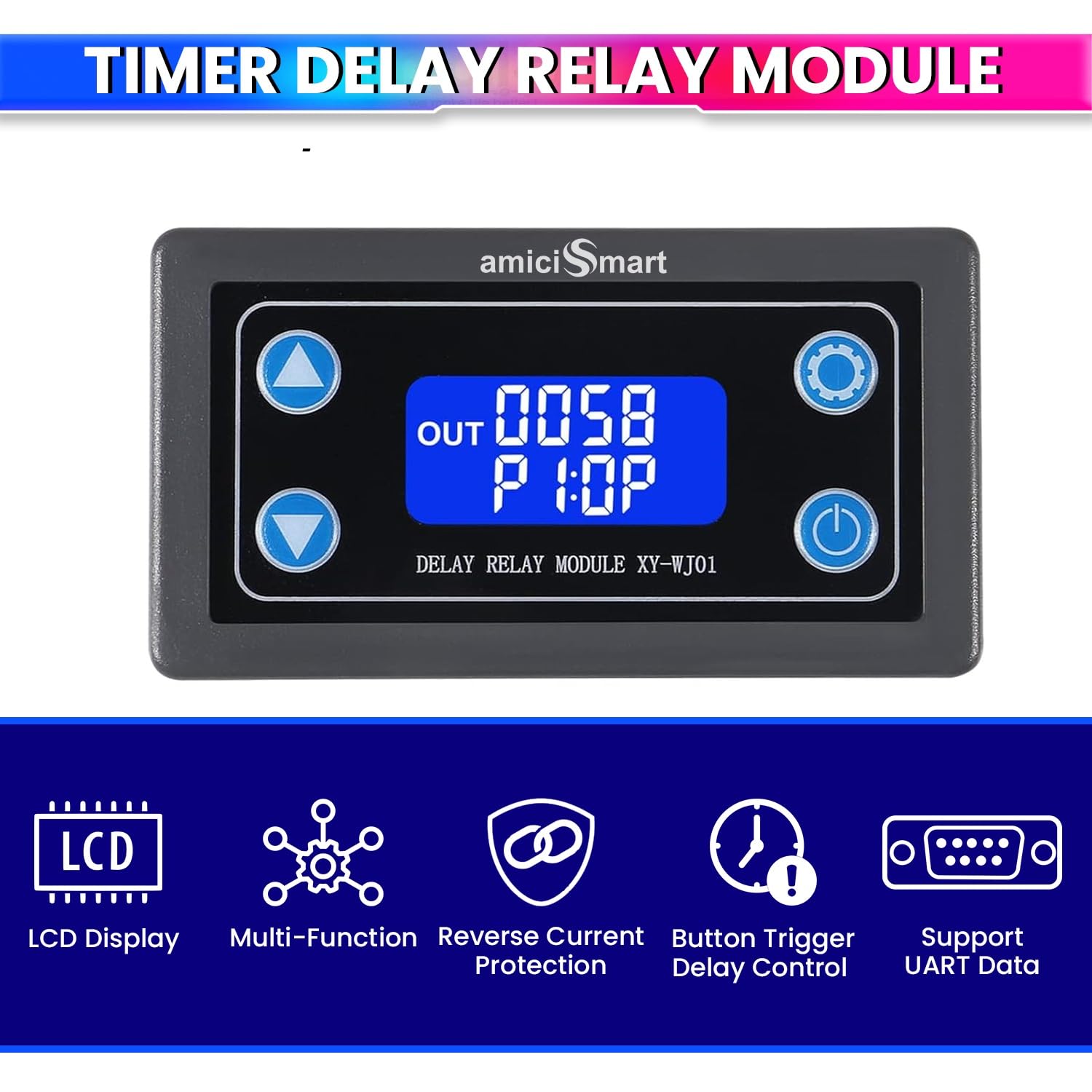

- Versatile Timer Functionality – Easily program this timer delay relay module for precise on/off delay control, ideal for automation projects, power management, and DIY electronics.
- Wide Voltage & Timing Range – Operates on DC 6-30V with an extensive timing range from 0.01 seconds to 9999 minutes, offering customizable delay intervals for diverse applications.

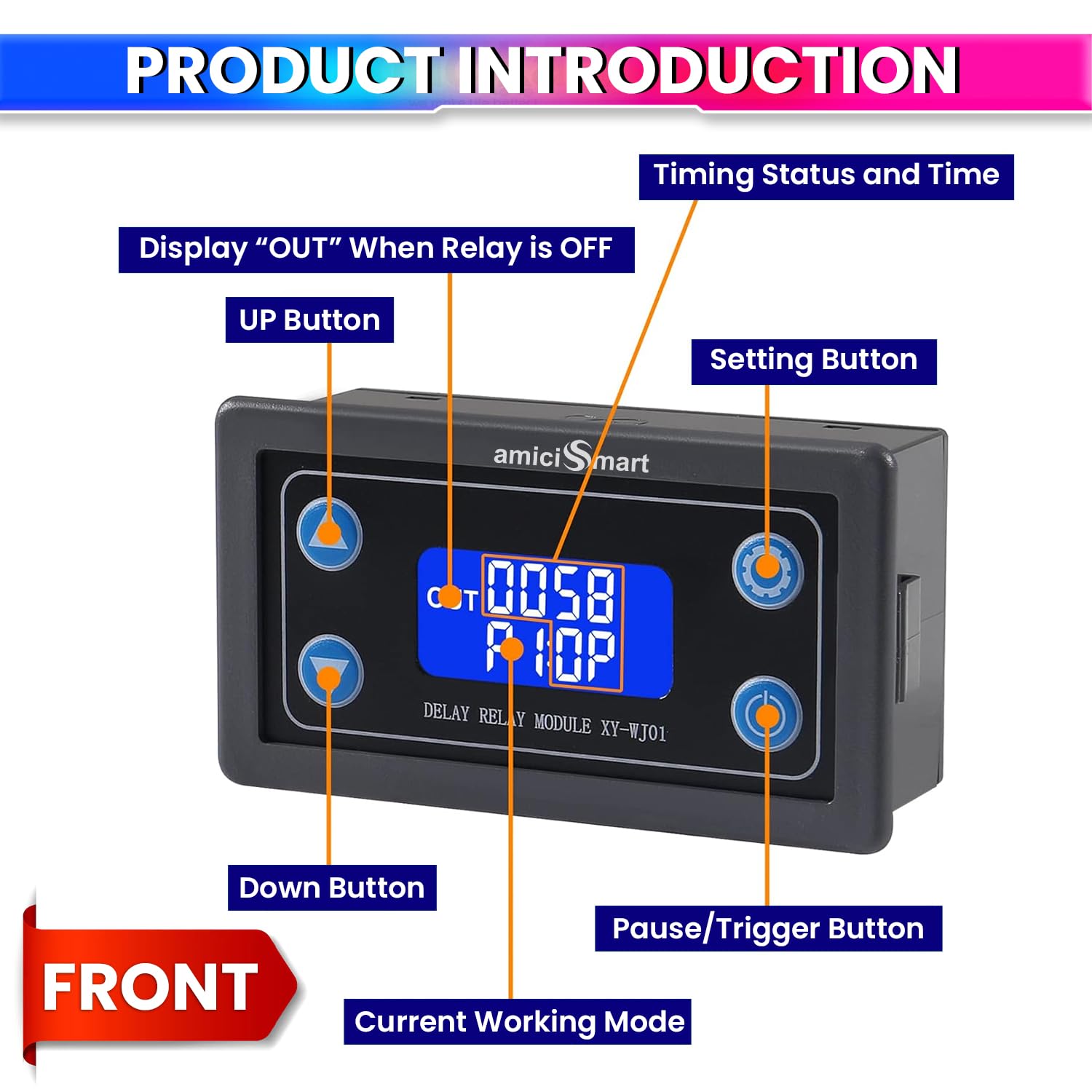

- Clear LCD Display with Sleep Mode – Equipped with a user-friendly LCD display and auto-sleep mode. Easily activate or deactivate sleep mode by long-pressing the pause button in modes P0~P7, perfect for monitoring without excessive power drain.
- Versatile Trigger Delay Control – Supports button-triggered delay, high and low-level trigger, and switch control, enabling reliable delay and cycle timing in various automation tasks and DIY projects.
- Effortless Parameter Setting with UART Support – Set and save unique OP (On Time), CL (off-Time), and LOP (Loop Cycle) parameters independently, even after power-off, with UART data upload for quick and flexible customization.
Low stock
In stock, ready to ship
Have a question?
Description
Subheading
Add t
Specification:-Power: 6-30VDC
Quiescent Current: ~15 mA
Working Current: ~50 mA
Timing Range: 0.01 sec~9999 min
Trigger signal source: High level trigger (3.0V~24V), Low level trigger (0.0V~0.2V), switching control (passive switch)
Relay: SPST-NO Isolated Contacts
Max output load: DC 30V 10A and AC 220V 5A
Operating Temperature: -40~85?C
Connections: Terminal Strip
Service life: More than 100,000 times
- Versatile Timer Functionality – Easily program this timer delay relay module for precise on/off delay control, ideal for automation projects, power management, and DIY electronics.
- Wide Voltage & Timing Range – Operates on DC 6-30V with an extensive timing range from 0.01 seconds to 9999 minutes, offering customizable delay intervals for diverse applications.
- Clear LCD Display with Sleep Mode – Equipped with a user-friendly LCD display and auto-sleep mode. Easily activate or deactivate sleep mode by long-pressing the pause button in modes P0~P7, perfect for monitoring without excessive power drain.
- Versatile Trigger Delay Control – Supports button-triggered delay, high and low-level trigger, and switch control, enabling reliable delay and cycle timing in various automation tasks and DIY projects.
- Effortless Parameter Setting with UART Support – Set and save unique OP (On Time), CL (off-Time), and LOP (Loop Cycle) parameters independently, even after power-off, with UART data upload for quick and flexible customization.
