amiciSmart 2 in 1 DC-DC 5A Buck Convertor Adjustable Power CC/CV Step-Down Charge Power Supply Module
Increments of 1
Minimum of 1
Maximum of
Sale price
Rs. 999.00
-34%
Regular price
Rs. 1,500.00
(MRP Inclusive of All Taxes)
Regular price
Rs. 999.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
4 bits Step-Down Power Module
Input voltage: 5V-32V
Output voltage: 1.27V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ? 0.5%
Voltage Regulation: ? 2.5%
Operating Temperature: -40?to +85?
Status LEDs

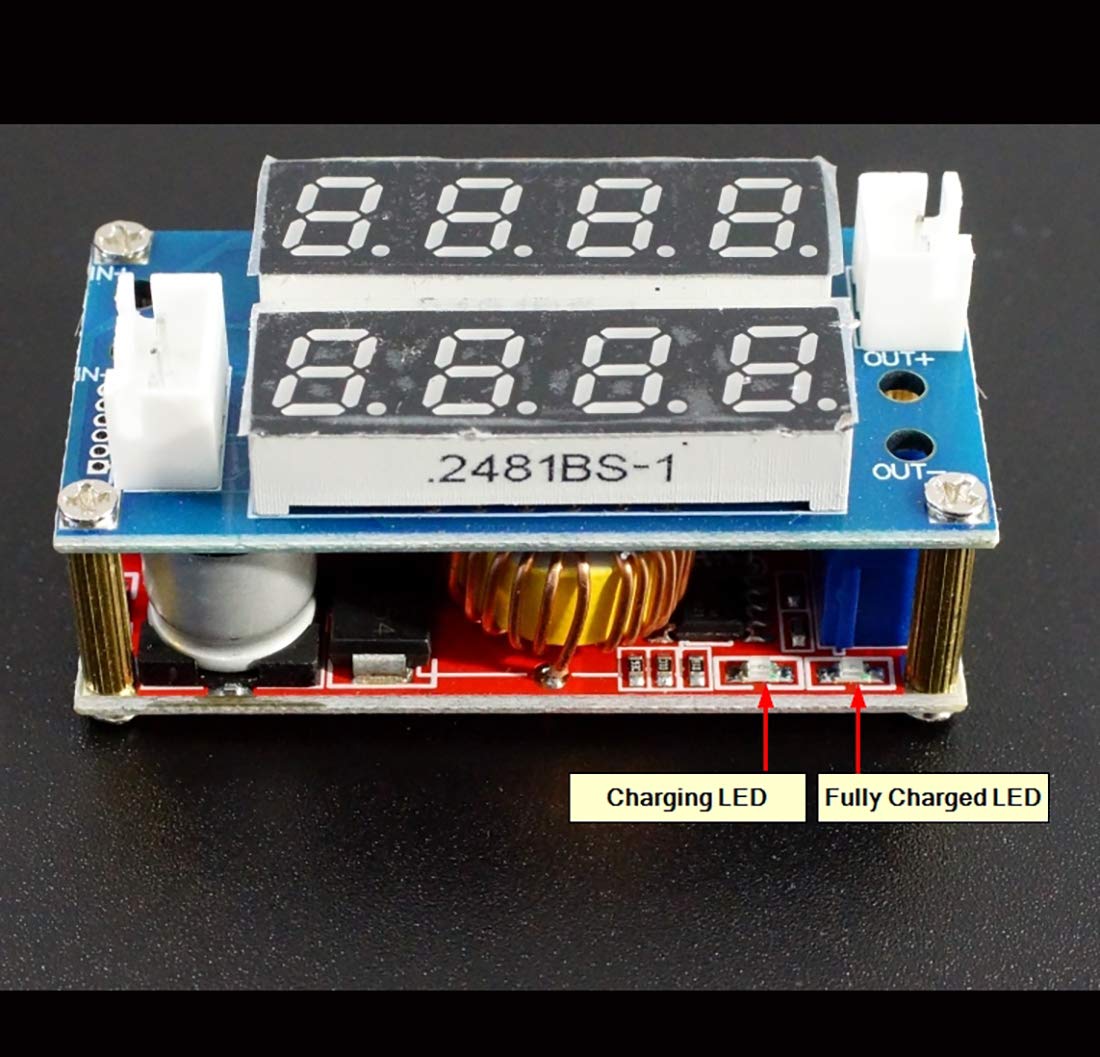

The LED on the left comes on to indicate that charging is occurring if the module is being used to charge a battery. The LED on the right comes on to indicate that charging is complete as the current being drawn from the module is reduced toward zero. It switches the LEDs between the two states when the current reaches approximately 10% of the current limit setting.
Input voltage: 5V-32V
Output voltage: 1.27V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ? 0.5%
Voltage Regulation: ? 2.5%
Operating Temperature: -40?to +85?
Status LEDs
The LED on the left comes on to indicate that charging is occurring if the module is being used to charge a battery. The LED on the right comes on to indicate that charging is complete as the current being drawn from the module is reduced toward zero. It switches the LEDs between the two states when the current reaches approximately 10% of the current limit setting.

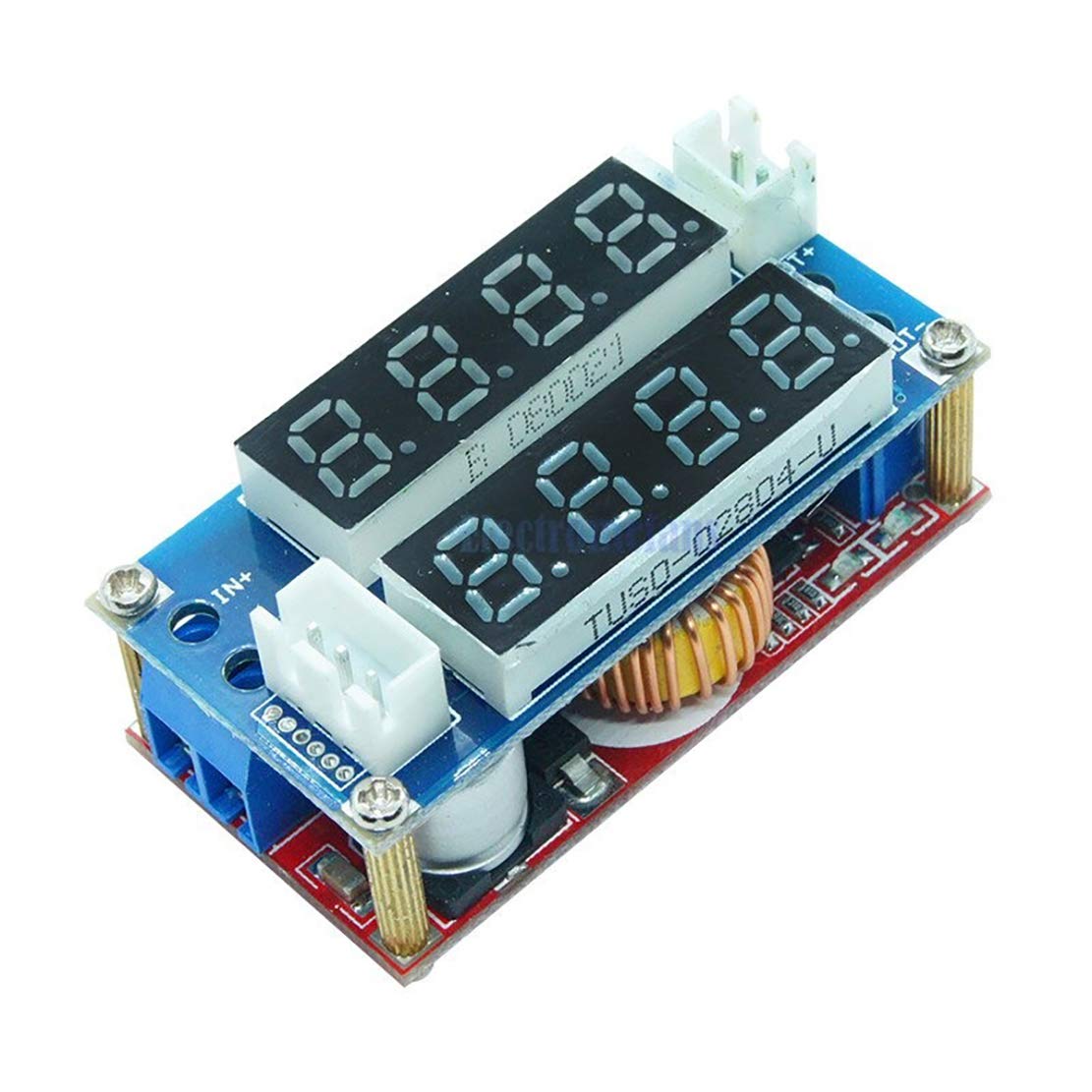

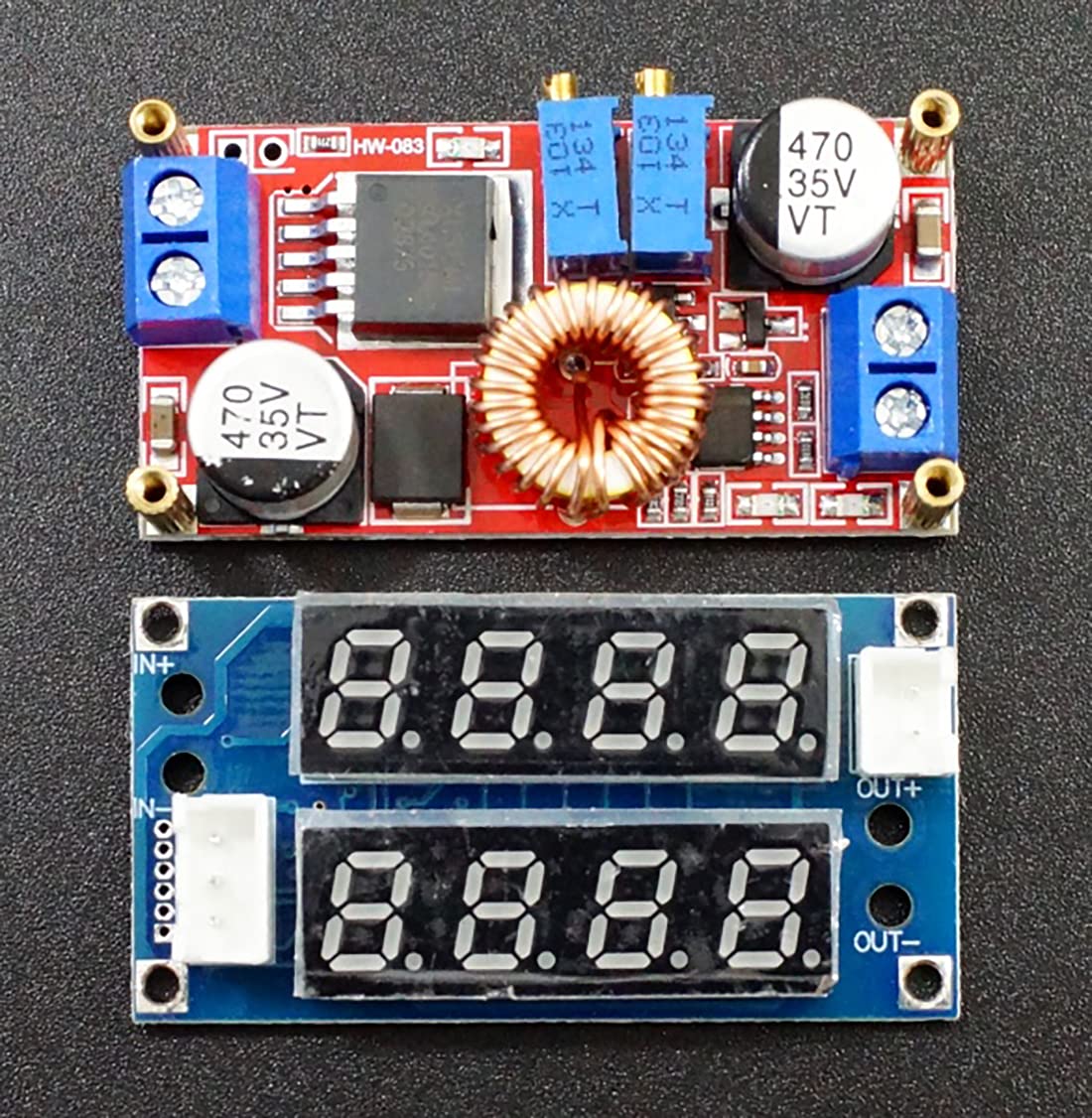

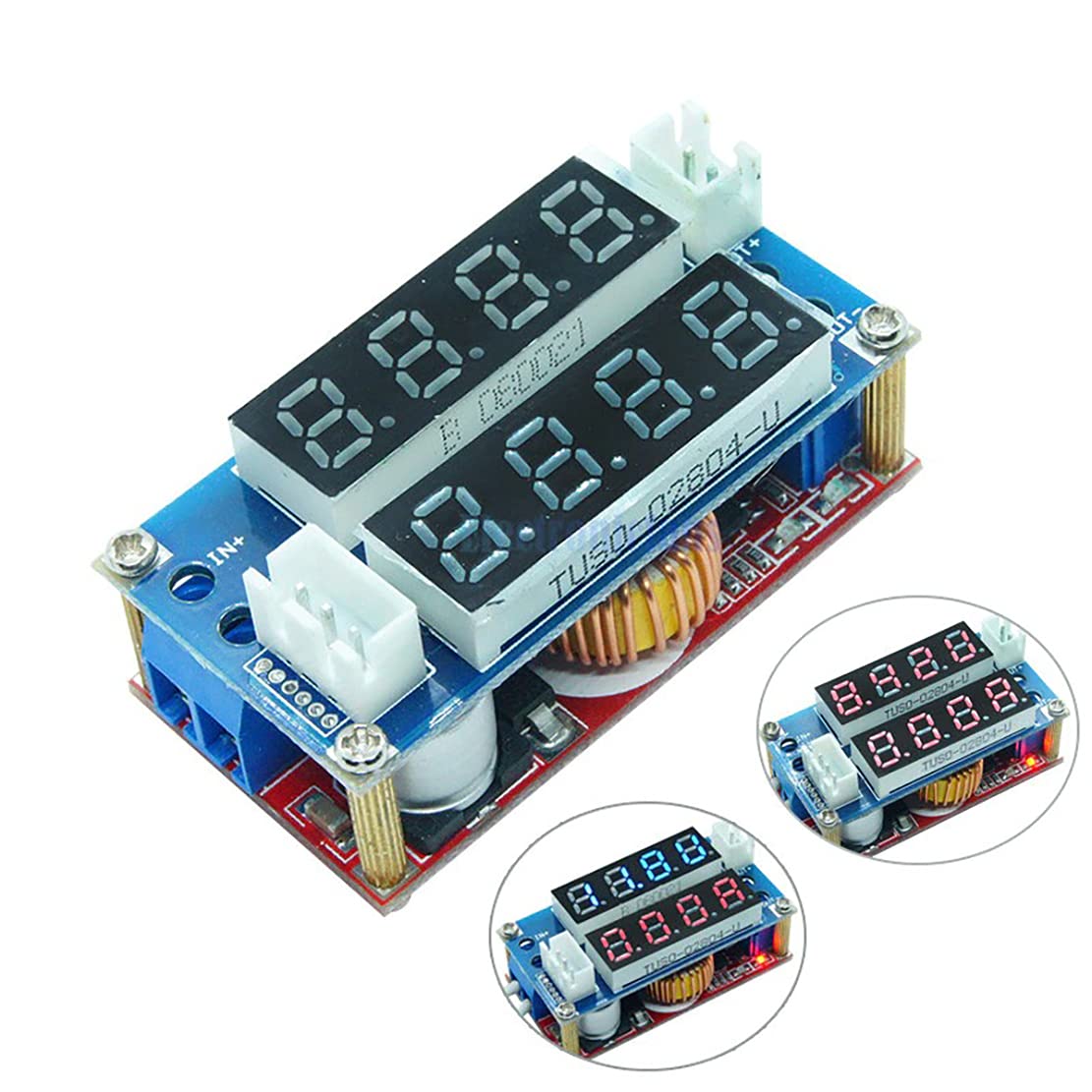

- This compact DC-DC module is an adjustable XL4015 based voltage step-down (buck) converter module. The module is rated for an input of 5V – 32V with an output voltage of 1.27V – 30V at up to 5A.

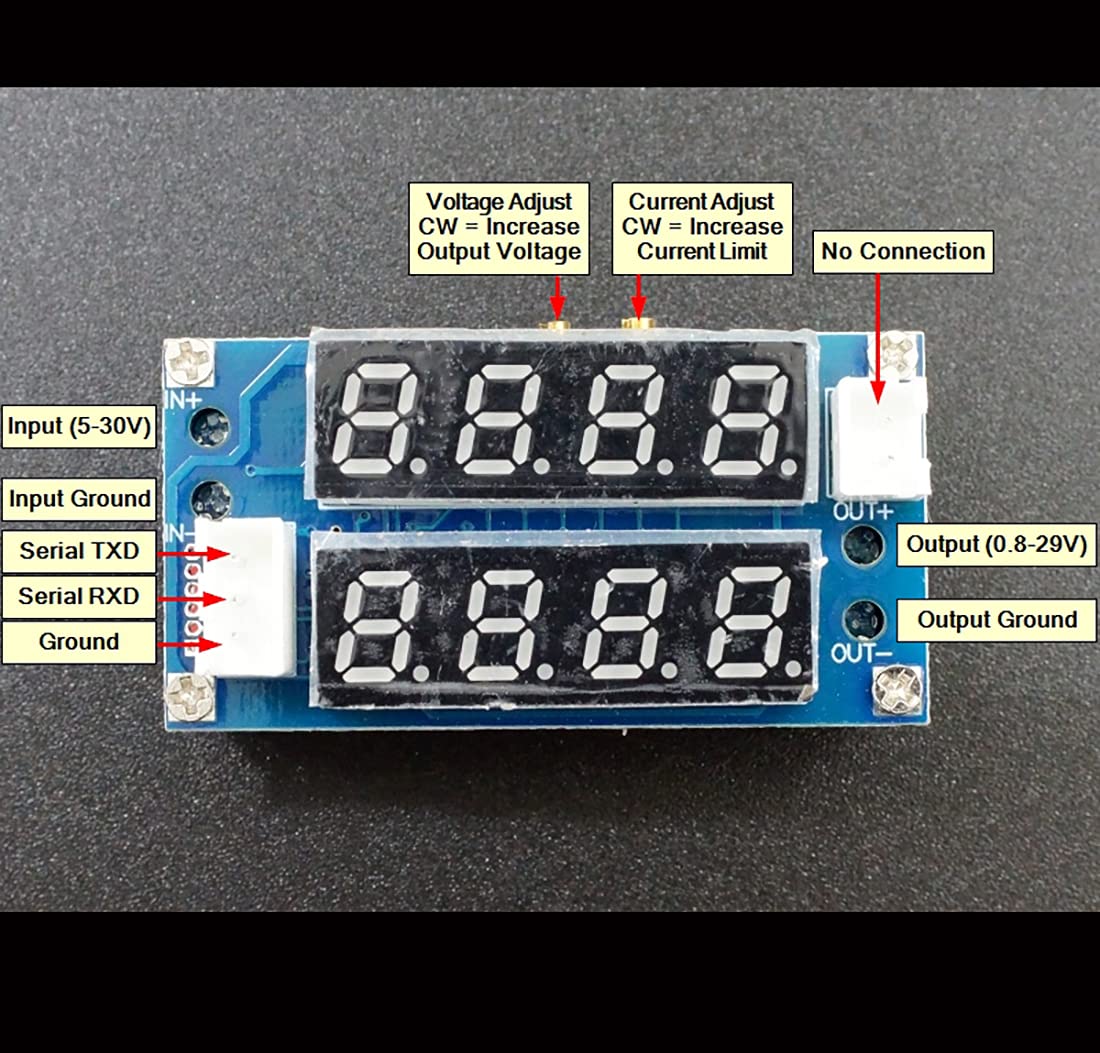

- The display shows the output voltage on the top display and output current on the bottom display.

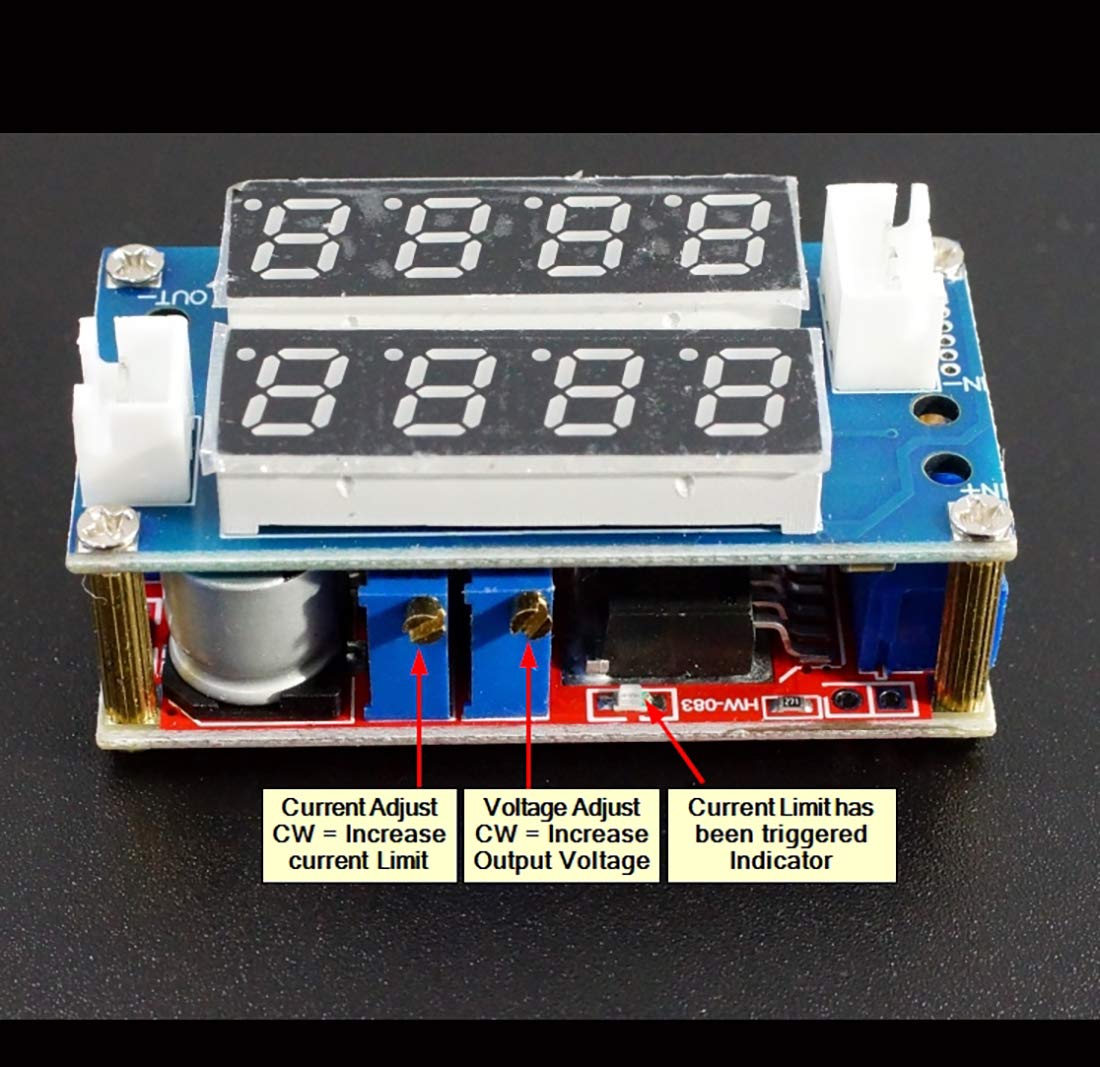

- The potentiometer towards the middle of the module is used for adjusting the output voltage and output current which is shown on the LED display.
- There are 2 LEDs that display the charging state.
Low stock
In stock, ready to ship
Have a question?
Description
Subheading
Add t
4 bits Step-Down Power ModuleInput voltage: 5V-32V
Output voltage: 1.27V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ? 0.5%
Voltage Regulation: ? 2.5%
Operating Temperature: -40?to +85?
Status LEDs
The LED on the left comes on to indicate that charging is occurring if the module is being used to charge a battery. The LED on the right comes on to indicate that charging is complete as the current being drawn from the module is reduced toward zero. It switches the LEDs between the two states when the current reaches approximately 10% of the current limit setting.
- This compact DC-DC module is an adjustable XL4015 based voltage step-down (buck) converter module. The module is rated for an input of 5V – 32V with an output voltage of 1.27V – 30V at up to 5A.
- The display shows the output voltage on the top display and output current on the bottom display.
- The potentiometer towards the middle of the module is used for adjusting the output voltage and output current which is shown on the LED display.
- There are 2 LEDs that display the charging state.
