Know before you buy
-
4S LiFePO4 only
For 12V packs of four LiFePO4 cells.
-
100A continuous
Charge and discharge current, both up to 100A.
-
3.65V / 2.05V per-cell cut-offs
Overcharge and over-discharge limits tuned for LiFePO4.
-
1A active balancer
Redistributes charge between cells instead of wasting it as heat.
Features that make it useful
-

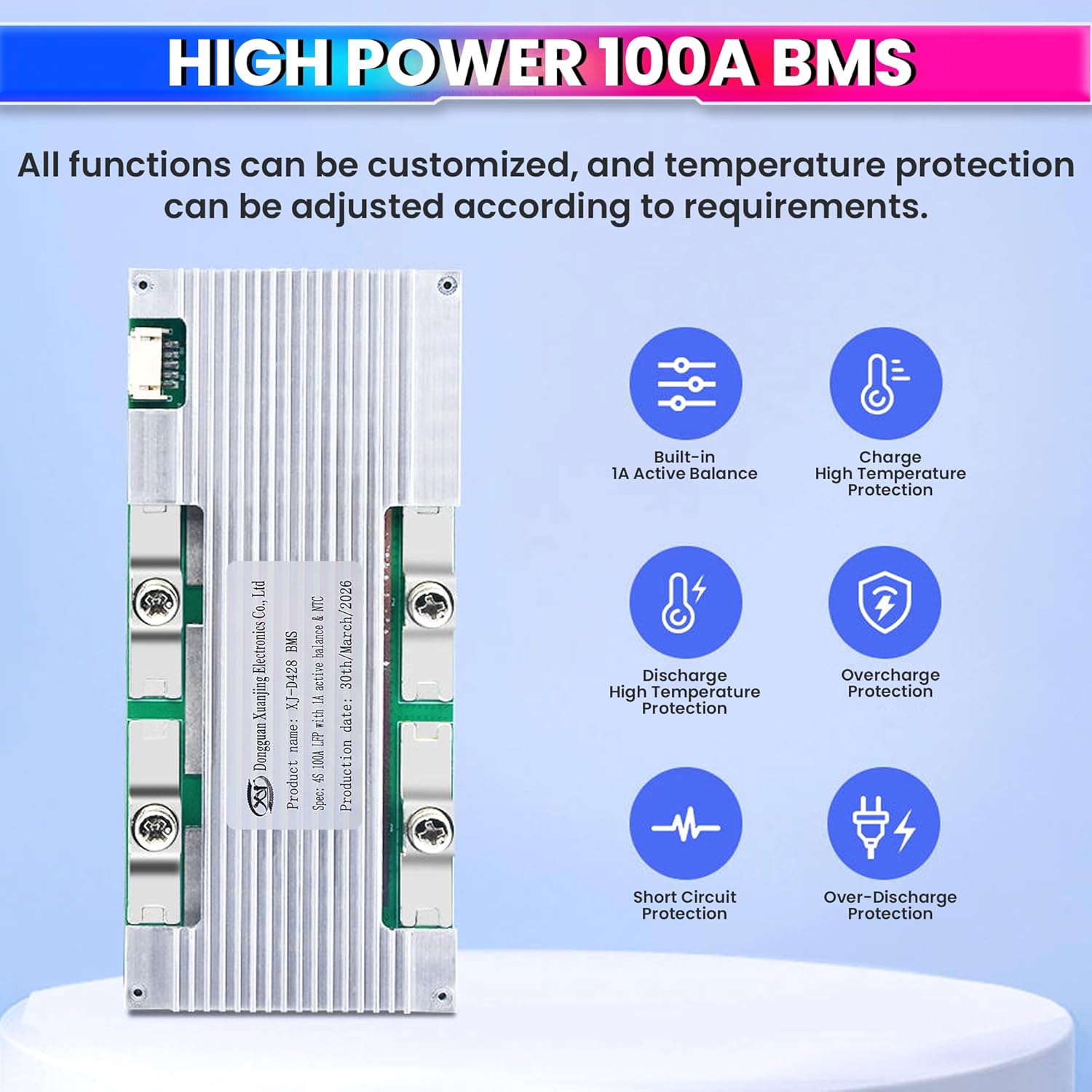

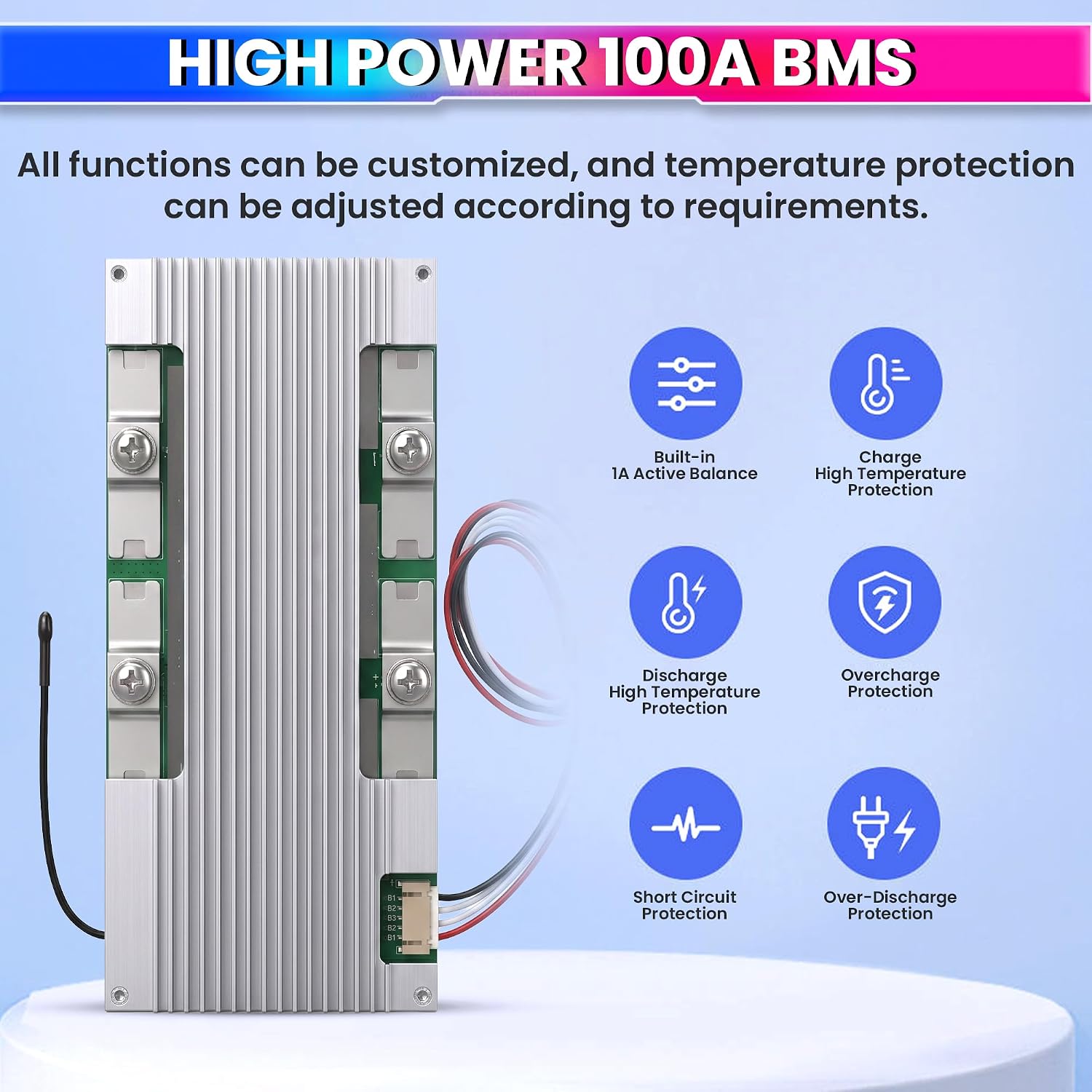

Five-layer protection
Overcharge, over-discharge, overcurrent, short circuit and temperature.
-
Temperature cut-off
Pauses charging or discharging in extreme heat or cold.
-
Ultra-low standby
50µA in operation, 25µA in sleep mode.
-
Solar, EV and inverter packs
Built for high-load solar storage, EV and backup systems.
-
1-year warranty
Support at 980-970-9898 or care@amicikart.com.

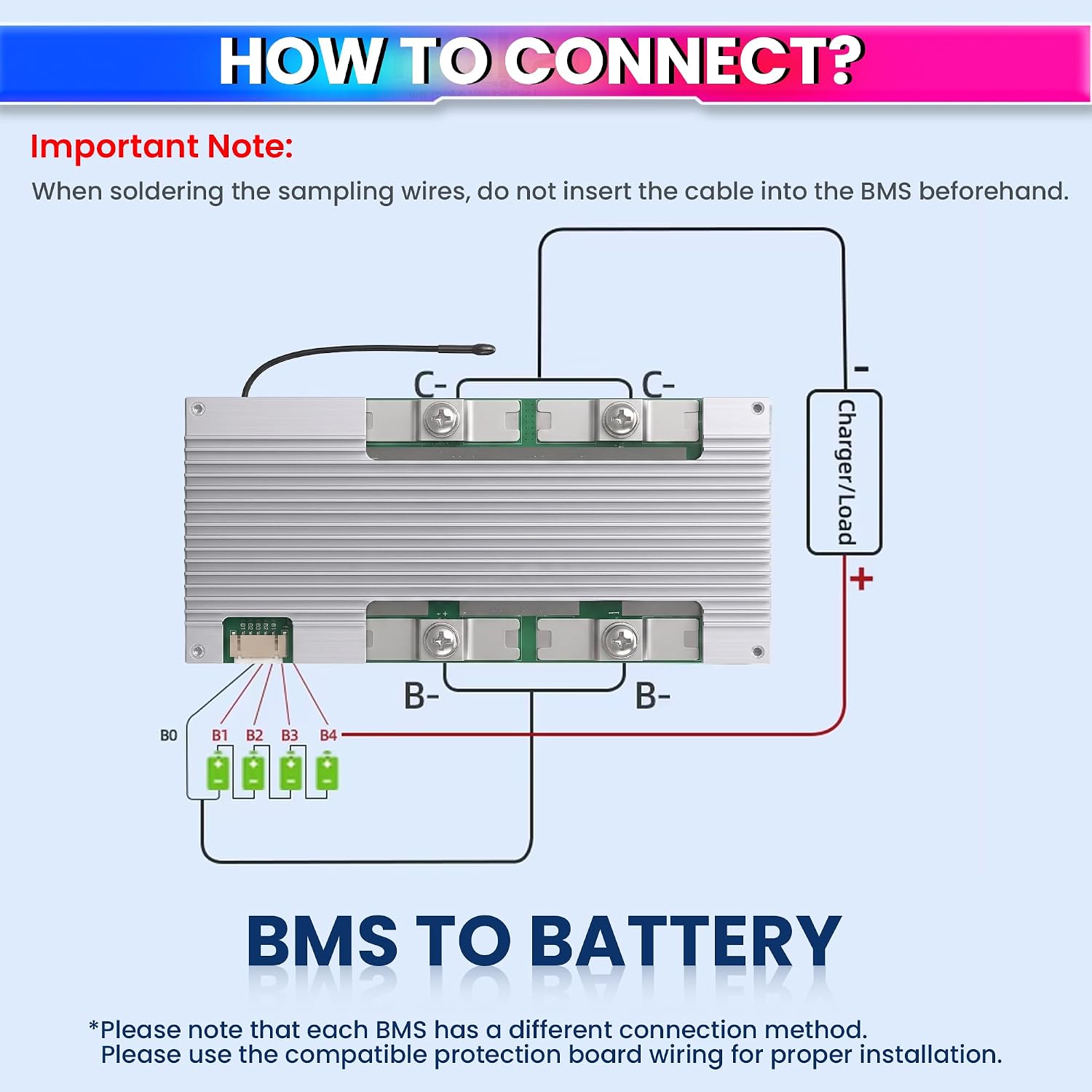

How to use
-
Confirm your pack
Make sure it's a 4S LiFePO4 pack (12V nominal).
-
Connect the balance leads in order
Wire each balance lead to its cell in the order marked on the board, and check each with a multimeter before plugging in.
-
Connect the main leads
Connect the battery and the load/charger leads as marked, using cable rated for your current.
-
Test
Check the output before connecting your inverter or vehicle.

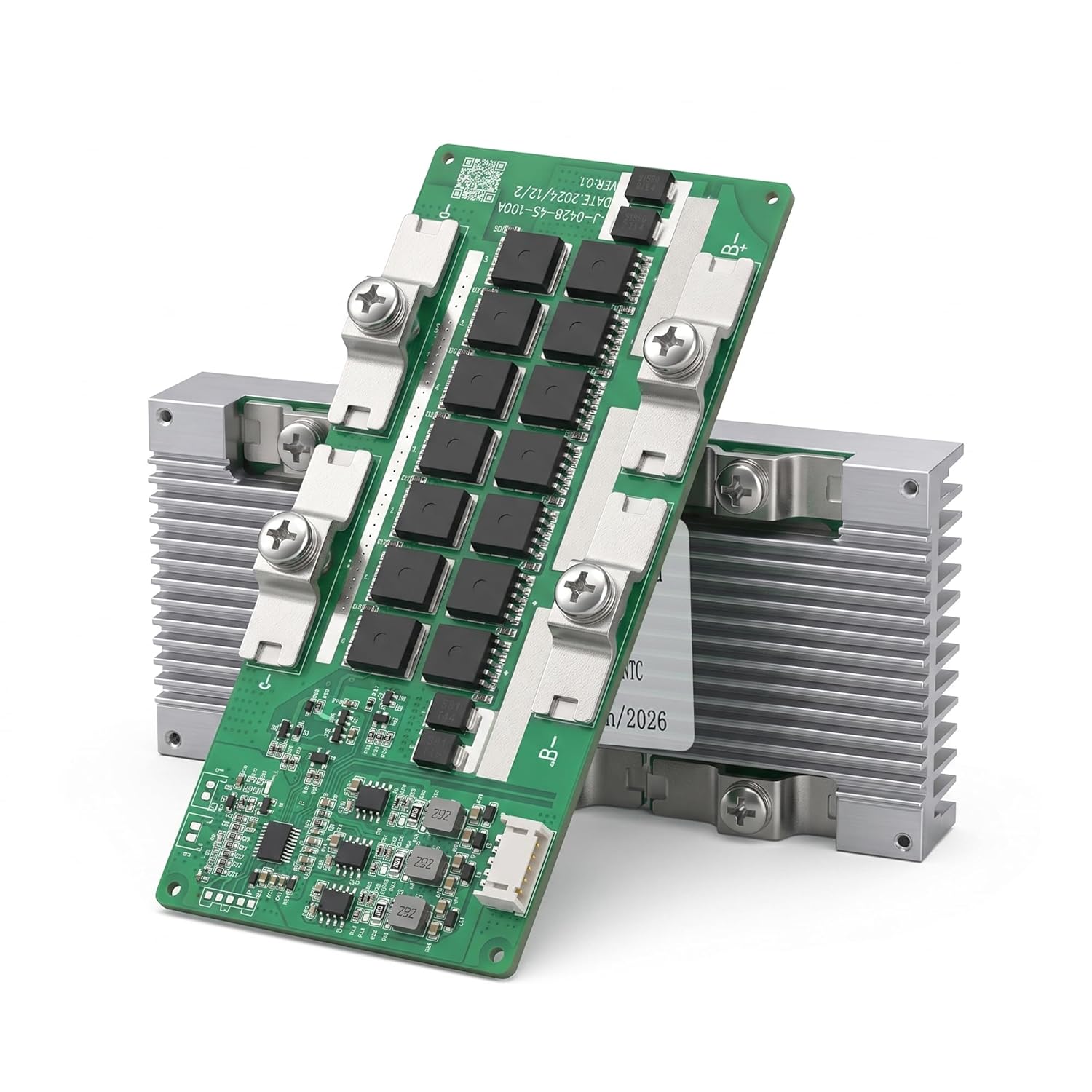

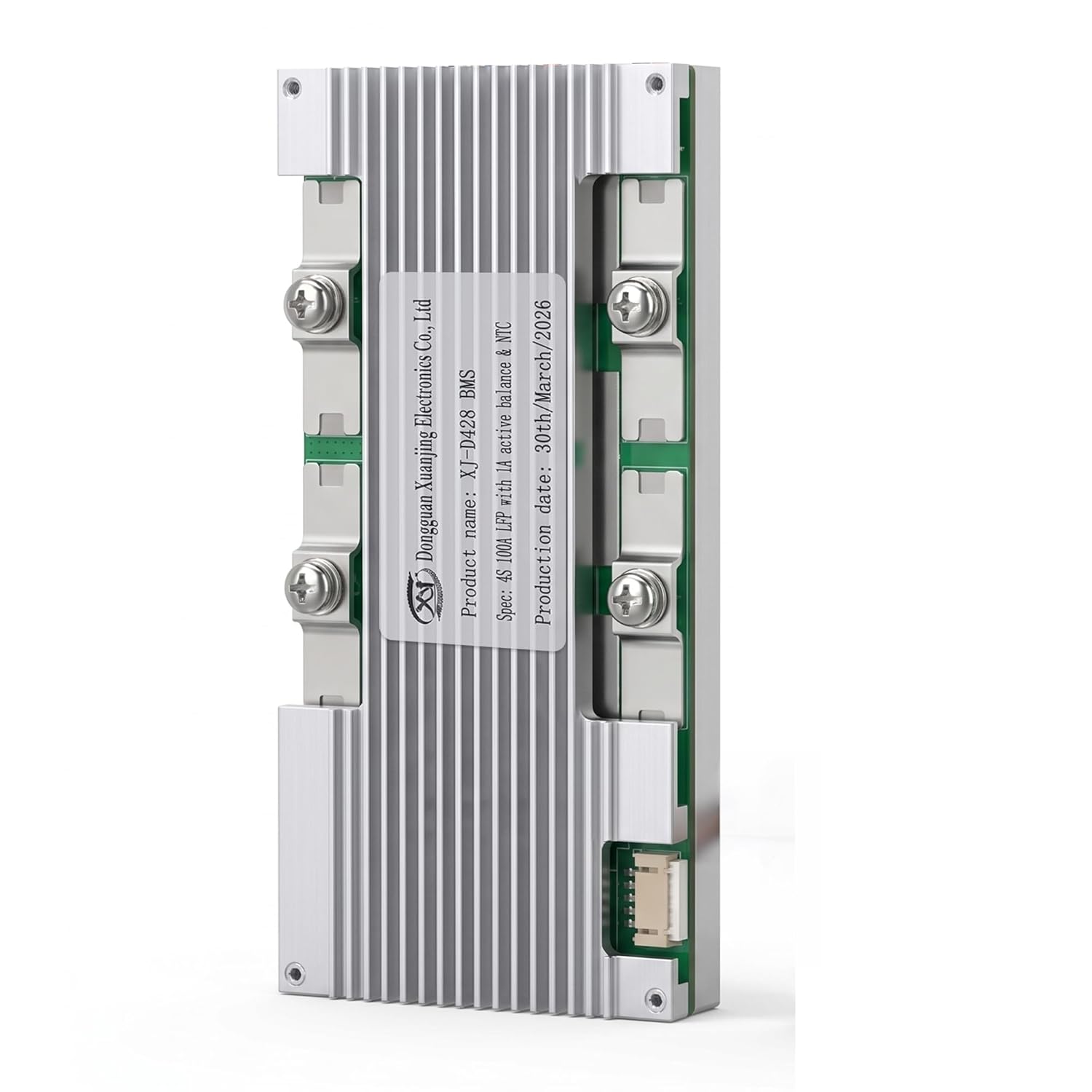

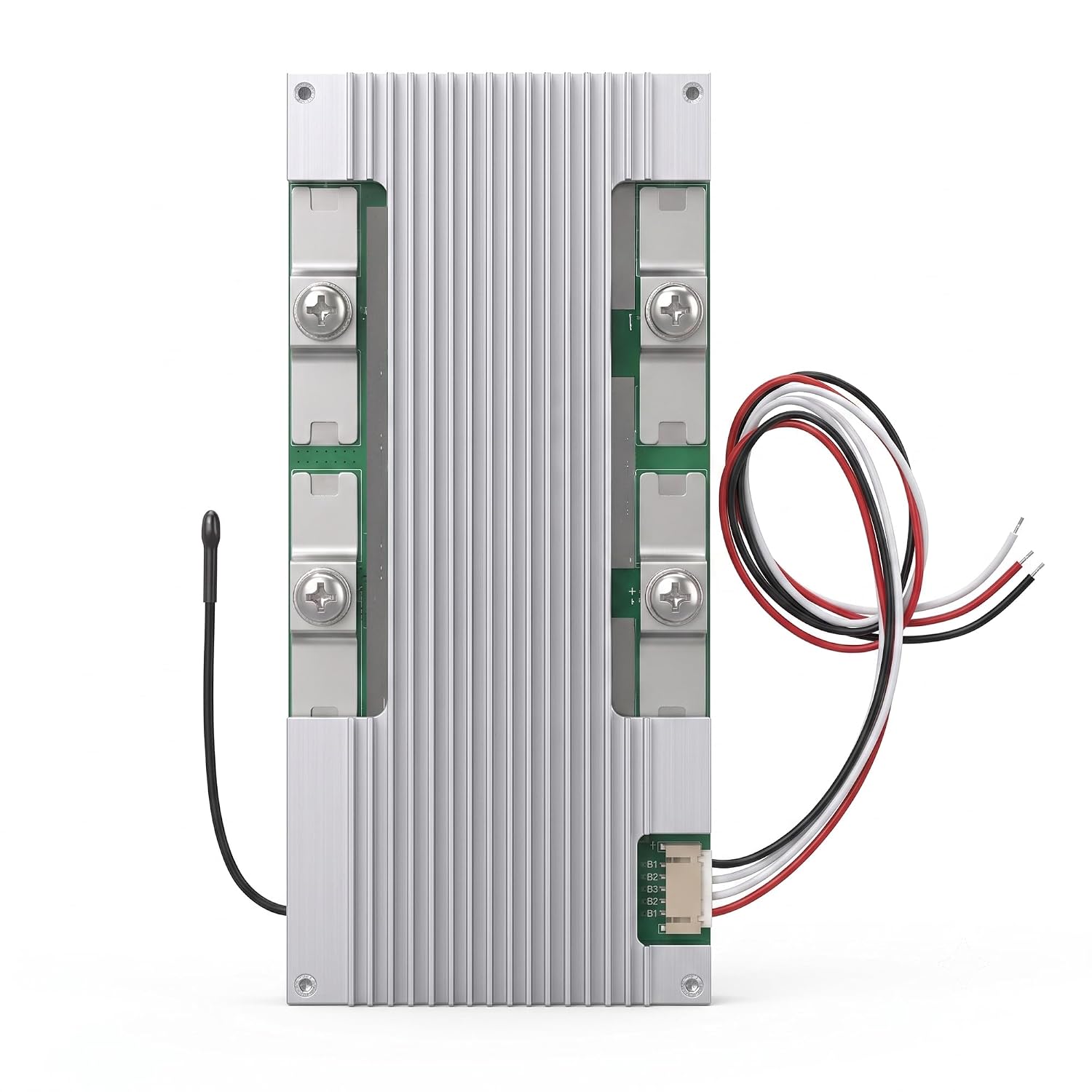

4S 12V LiFePO4 BMS 100A, 1A Active Balancer
amiciKart · 4S LiFePO4 (12V) · 100A continuous charge/discharge · 1A active balancer · 3.65V/2.05V cut-offs · 25µA sleep
A high-current battery management system for 4S LiFePO4 packs (12V nominal). It handles 100A continuous charge and discharge, and its built-in 1A active balancer moves charge between cells for more even voltages and better use of capacit...
Orders are processed before 2 PM on dispatch days.
Use code
Use code
Use code
Couldn't load pickup availability

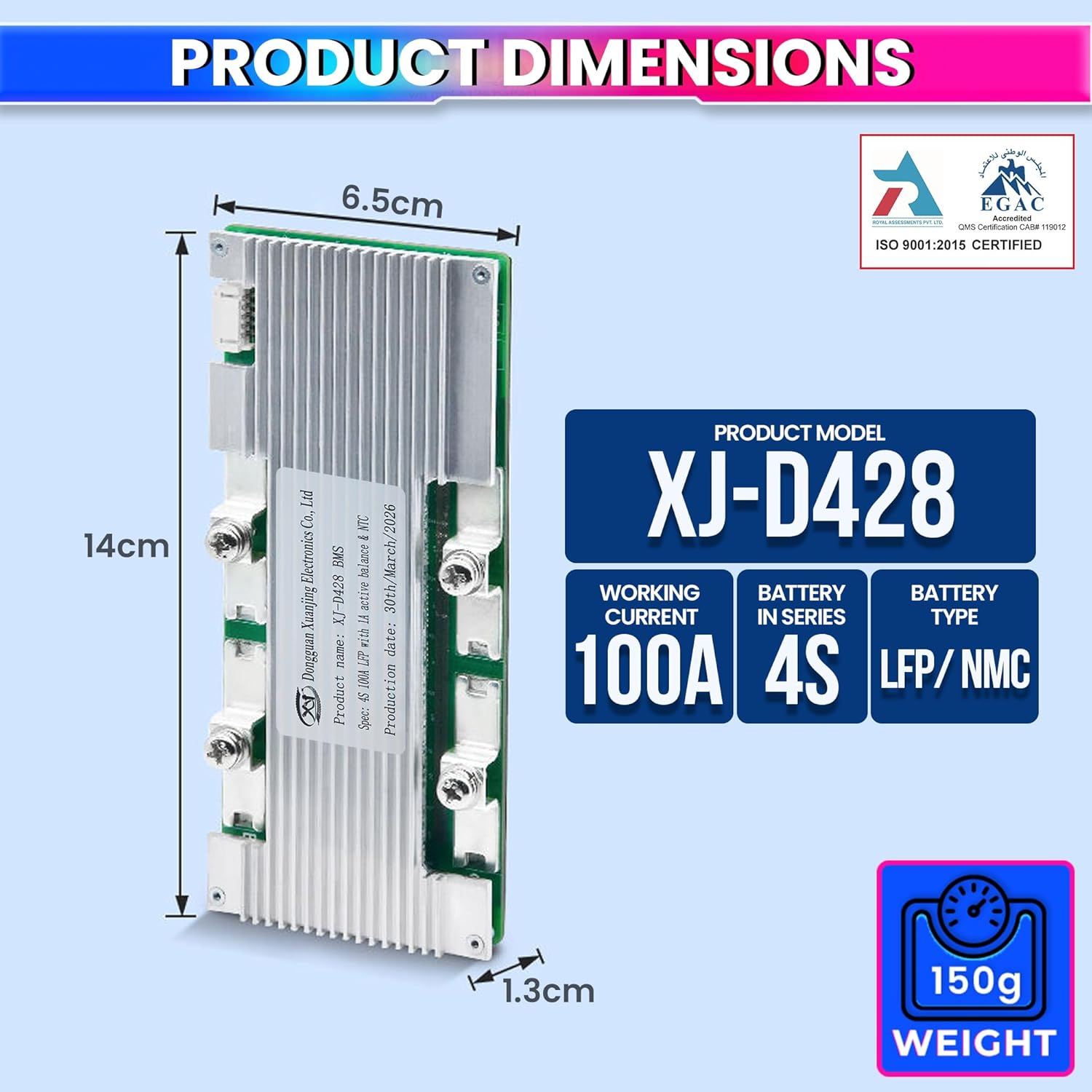

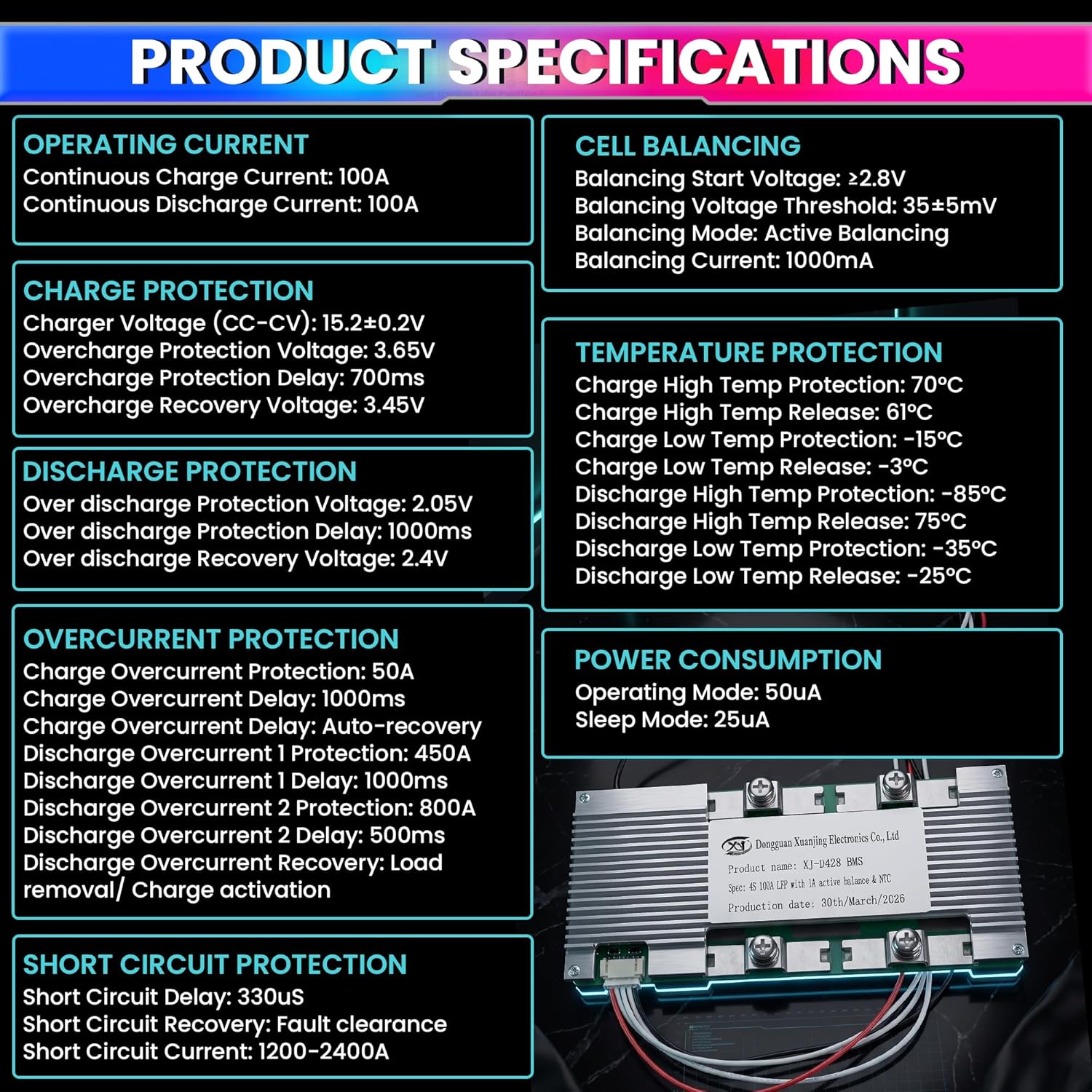

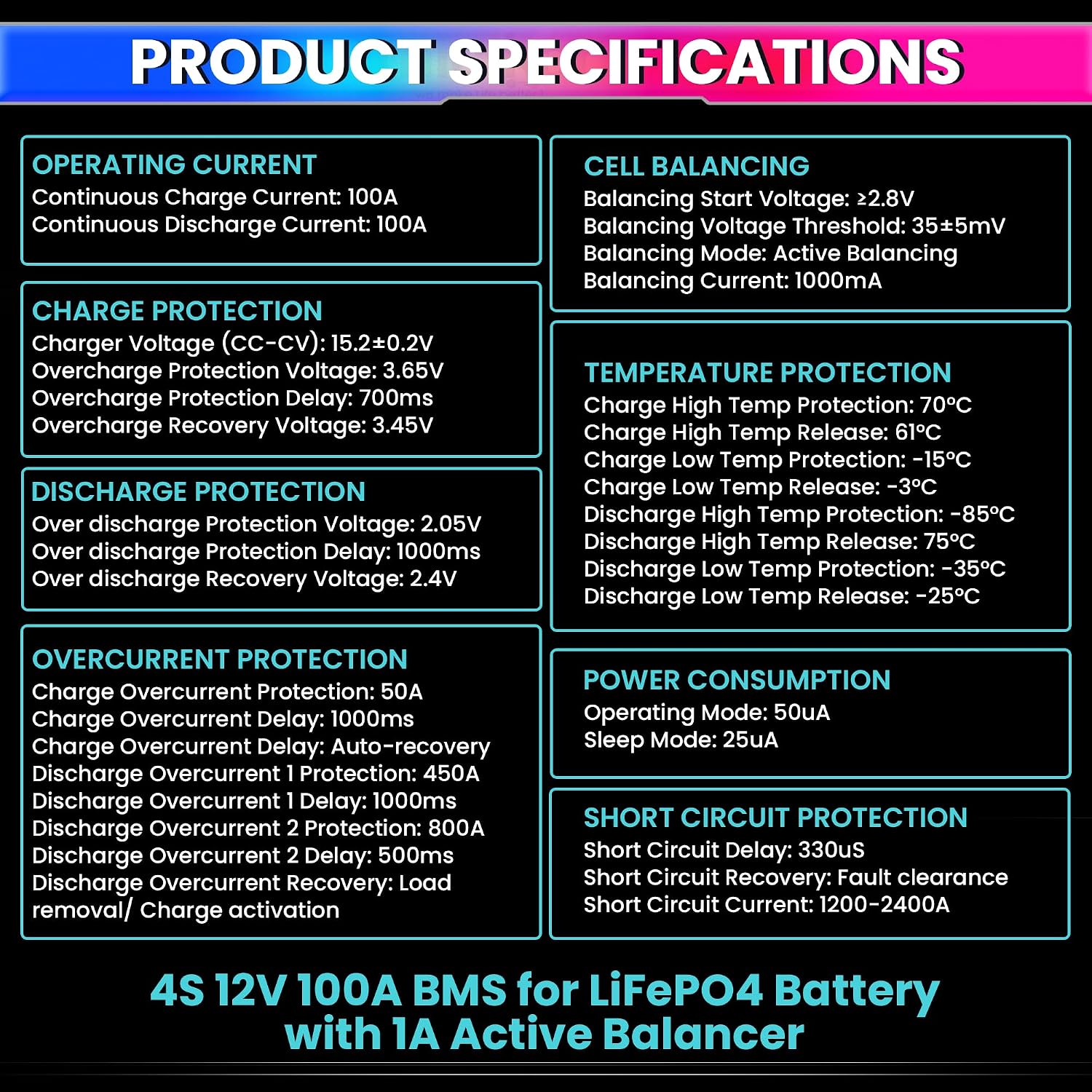

Specifications
| Brand | amiciKart |
|---|---|
| SKU | 1xBMS-4S-100A-1A |
| Type | LiFePO4 BMS with active balancer |
| Cell configuration | 4S (12V nominal) |
| Continuous current | 100A charge and discharge |
| Balancer | 1A (1000mA) active |
| Overcharge cut-off | 3.65V per cell |
| Over-discharge cut-off | 2.05V per cell |
| Other protection | Overcurrent, short circuit, temperature |
| Standby current | 50µA active / 25µA sleep |
| Warranty | 1 year |
Frequently asked questions
Is it only for LiFePO4?
How much current can it handle?
What does the active balancer do?
Will it drain the battery when idle?
Full Product Description
4S 12V LiFePO4 BMS 100A, 1A Active Balancer
A high-current battery management system for 4S LiFePO4 packs (12V nominal). It handles 100A continuous charge and discharge, and its built-in 1A active balancer moves charge between cells for more even voltages and better use of capacity. Protection includes overcharge cut-off at 3.65V per cell, over-discharge cut-off at 2.05V per cell, overcurrent, short circuit and temperature. Standby draw is just 50µA active and 25µA in sleep. 1-year warranty.
- Five-layer protection: Overcharge, over-discharge, overcurrent, short circuit and temperature.
- Temperature cut-off: Pauses charging or discharging in extreme heat or cold.
- Ultra-low standby: 50µA in operation, 25µA in sleep mode.
- Solar, EV and inverter packs: Built for high-load solar storage, EV and backup systems.
- 1-year warranty: Support at 980-970-9898 or care@amicikart.com.
Important: Wrong wiring order can damage the BMS and the cells. Connect the balance leads in the order marked, and check each wire first.
